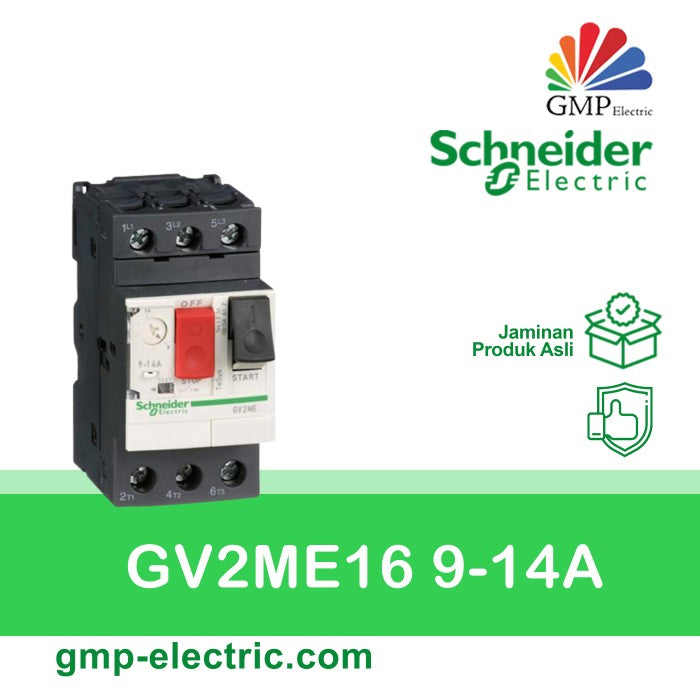

Motor Breaker Schneider GV2ME16 9-14A

TeSys

TeSys GV2

GV2ME

Motor

Thermal-magnetic

3P

AC

AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2

50/60 Hz conforming to IEC 60947-4-1

35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)

Any position

5.5 kW at 400/415 V AC 50/60 Hz
7.5 kW at 500 V AC 50/60 Hz
9 kW at 690 V AC 50/60 Hz
11 kW at 690 V AC 50/60 Hz

100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
6 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2

Push-button

14 A

9���14 A

170 A

690 V AC 50/60 Hz conforming to IEC 60947-2

690 V AC 50/60 Hz conforming to IEC 60947-2

14 A conforming to IEC 60947-4-1

IEC 60947-2 6 kV

2.5 W

100000 cycles

100000 cycles for AC-3 at 440 V

25 cyc/h

Continuous conforming to IEC 60947-4-1

1.7 N.m on screw clamp terminals

Yes conforming to IEC 60947-1

Yes conforming to IEC 60947-4-1

89 mm

45 mm

78.5 mm

0.26 kg

EN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1

IECEE CB Scheme
UL
CSA
CCC
EAC
ATEX
BV
LROS (Lloyds register of shipping)
DNV-GL
RINA

TH

IP20 conforming to IEC 60529

IK04

-20���60 ��C

-40���80 ��C

960 ��C conforming to IEC 60695-2-1

2000 m
