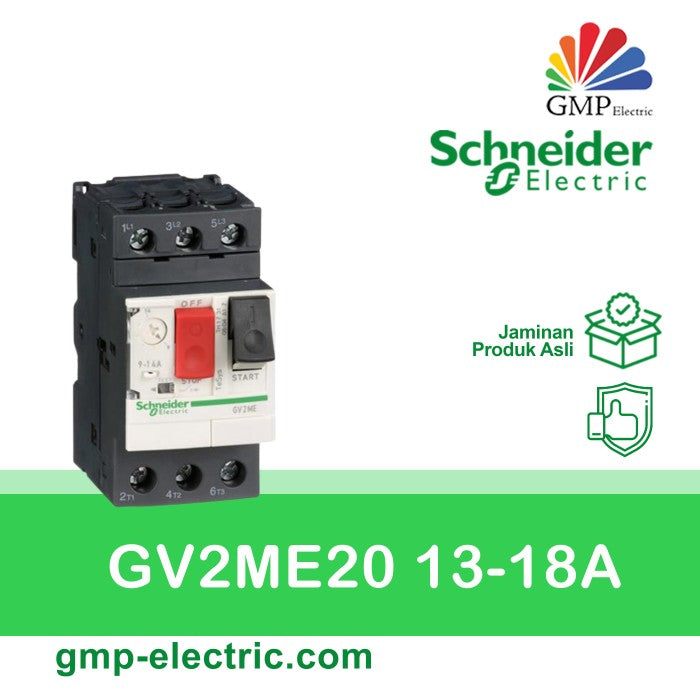

Motor Breaker Schneider GV2ME20 13-18A

Name: Motor Breaker Schneider GV2ME20 13-18A
Brand: Schneider
SKU: 0005228
Price: 605000.0 IDR
Availability: InStock

Save 44%

SchneiderSKU: 0005228

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range	TeSys
product name	TeSys GV2
device short name	GV2ME
device application	Motor
trip unit technology	Thermal-magnetic

Complementary
poles description	3P
network type	AC
utilisation category	AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2
network frequency	50/60 Hz conforming to IEC 60947-4-1
fixing mode	35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate)
operating position	Any position
motor power kW	7.5 kW at 400/415 V AC 50/60 Hz 9 kW at 500 V AC 50/60 Hz 15 kW at 690 V AC 50/60 Hz
breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 8 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
control type	Push-button
[In] rated current	18 A
thermal protection adjustment range	13��18 A
magnetic tripping current	223 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	18 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	IEC 60947-2 6 kV
power dissipation per pole	2.5 W
mechanical durability	100000 cycles
electrical durability	100000 cycles for AC-3 at 440 V
maximum operating rate	25 cyc/h
rated duty	Continuous conforming to IEC 60947-4-1
tightening torque	1.7 N.m on screw clamp terminals
suitability for isolation	Yes conforming to IEC 60947-1
phase failure sensitivity	Yes conforming to IEC 60947-4-1
height	89 mm
width	45 mm
depth	78.5 mm
net weight	0.26 kg

Environment
standards	EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1
product certifications	IECEE CB Scheme UL CSA CCC EAC ATEX BV LROS (Lloyds register of shipping) DNV-GL RINA
protective treatment	TH
IP degree of protection	IP20 conforming to IEC 60529
IK degree of protection	IK04
ambient air temperature for operation	-20��60 ��C
ambient air temperature for storage	-40��80 ��C
fire resistance	960 ��C conforming to IEC 60695-2-1
operating altitude	2000 m
