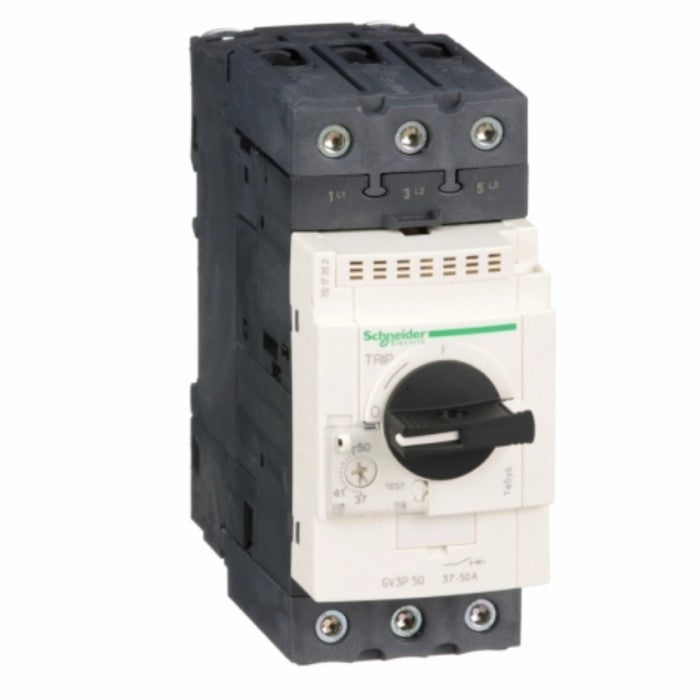

Motor Breaker Schneider GV3P50 37-50A

Name: Motor Breaker Schneider GV3P50 37-50A
Brand: Schneider
SKU: 0005237
Price: 2112000.0 IDR
Availability: OutOfStock

Save 32%

SchneiderSKU: 0005237

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range	TeSys
product name	TeSys GV3
device short name	GV3P
device application	Motor
trip unit technology	Thermal-magnetic

Complementary
poles description	3P
network type	AC
utilisation category	AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2
network frequency	50/60 Hz conforming to IEC 60947-4-1
fixing mode	35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws)
operating position	Any position
motor power kW	22 kW at 400/415 V AC 50/60 Hz 30 kW at 500 V AC 50/60 Hz 45 kW at 690 V AC 50/60 Hz
breaking capacity	100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 50 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 12 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity	100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 50 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
control type	Rotary knob
[In] rated current	50 A
thermal protection adjustment range	37��50 A
magnetic tripping current	700 A
[Ue] rated operational voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage	690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current	50 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage	IEC 60947-2 6 kV
power dissipation per pole	8 W
mechanical durability	50000 cycles
electrical durability	50000 cycles for AC-3 at 440 V In
maximum operating rate	25 cyc/h
rated duty	Continuous conforming to IEC 60947-4-1
tightening torque	5 N.m on EverLink BTR screw connectors for cable 25 mm�� 8 N.m on EverLink BTR screw connectors for cable 35 mm��
suitability for isolation	Yes conforming to IEC 60947-1
phase failure sensitivity	Yes conforming to IEC 60947-4-1
height	132 mm
width	55 mm
depth	136 mm
net weight	0.96 kg

Environment
standards	EN/IEC 60947-2 EN/IEC 60947-4-1 CSA C22.2 No 60947-4-1 UL 60947-4-1
product certifications	IECEE CB Scheme UL CSA CCC EAC ATEX BV LROS (Lloyds register of shipping) DNV-GL ABS
protective treatment	TH
IP degree of protection	IP20 conforming to IEC 60529
IK degree of protection	IK09
ambient air temperature for operation	-20��60 ��C
ambient air temperature for storage	-40��80 ��C
fire resistance	960 ��C conforming to IEC 60695-2-1
operating altitude	3000 m
