Description
Commercial data
| Article number | 25.646.0853.0 |
|---|---|

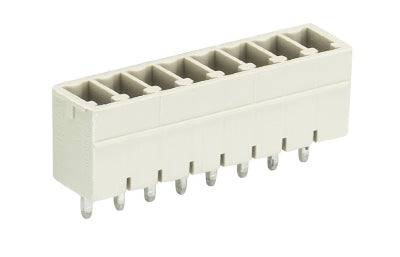

| Article description | PCB pin header 8513 S / 8 G OB |
| EAN | 4015573517998 |
| Order Unit | 50 piece(s) |
| Country of origin | DE |
| Customs tariff number | 85369010 |
Dimensions
| Length packed | 79 mm |
|---|---|
| Width packed | 98 mm |
| Height packed | 45 mm |
| Gross weight packed | 96.55 g |
| Net weight single part | 1.7 g |
| Volume packed | 348 ccm |
| Certificates / Approvals |  |
 |
 |
General
| Modular spacing | 3.5 mm |
|---|---|
| Soldering process | Wave soldering |
| Packaging | Carton |
| Number of poles | 8 |
| Number of levels | 1 |
| Marking | No |
| Fastening | None |
| Mating direction towards (circuit) board | 90° |
| Rated current | 8 A |
|---|---|
| Overvoltage Category I | 690 V |
| Overvoltage Category II | 250 V |
| Overvoltage Category III | 125 |
| Rated impulse voltage | 2.5 kV |
| Voltage UL | 300 V |
|---|---|
| Current field wiring | 8 A |
| Current factory wiring | 8 A |
| Voltage CSA | 300 V |
| Current CSA | 5 A |
| Type of insulation material | Thermoplastic |
|---|---|
| Color | Grey |
| Height | 9.2 mm |
| Length | 29.4 mm |
| Depth | 7.15 mm |
| Material contact base | CuZn |
| Material contact surface | Sn |
| ECLASS 11 | |
|---|---|
| ECLASS 8.1 | 27440402 |
| ETIM 7.0 | EC002637 |
| ETIM 6.0 | EC002637 |
| ETIM 5.0 | EC002637 |
| ETIM 4.0 | EC002637 |
| ROHS conformity status | Compliant |
|---|---|
| REACH-SVHC conformity status | Compliant |
