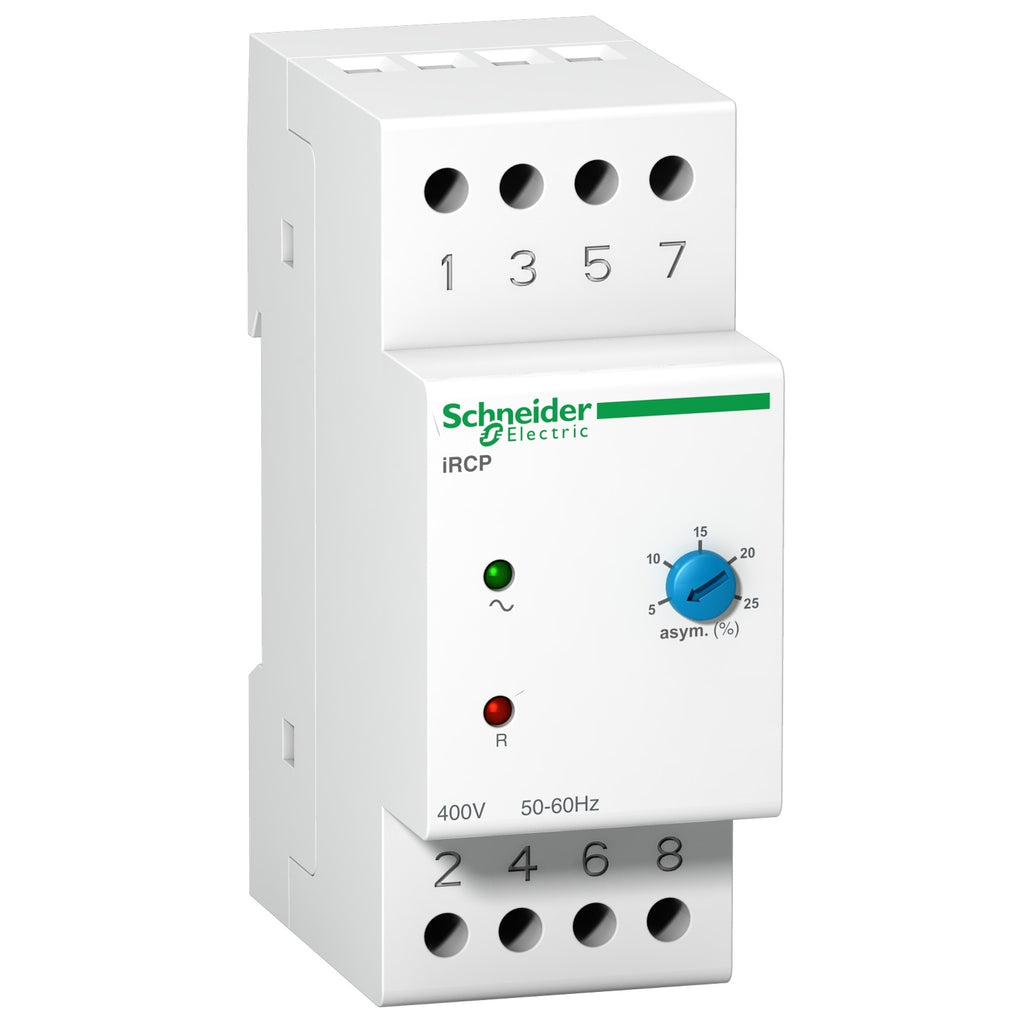

Phase Control Relay Schneider RCP A9E21180

Name: Phase Control Relay Schneider RCP A9E21180
Brand: Schneider
SKU: 0005250
Price: 1125900.0 IDR
Availability: OutOfStock

Save 50%

SchneiderSKU: 0005250

Share this product

Main
range of product	Acti 9
product name	Acti 9 iRC
product or component type	Control relay
device short name	IRCP
device application	Phase control relay
signal contacts composition	1 C/O

Complementary
[Ie] rated operational current	8 A at 250 V AC (cos Phi = 1)
local signalling	Red LED for fault It reports phase loss or reversal Green LED for power on
type of setting	Rotary knob: asymmetry Selected by wiring: measurement range
tripping threshold	5...25 % of Us phase asymmetry
hysteresis	5 %
time delay range	0.3 s
accuracy error	+/- 10 %
[Us] rated supply voltage	400 V AC 50/60 Hz
power consumption in VA	3 VA
mounting mode	Fixed
mounting support	35 mm symmetrical DIN rail
9 mm pitches	4
height	88.1 mm
width	36 mm
depth	67 mm
net weight	0.21 kg
colour	White
connections - terminals	Tunnel type terminals (top or bottom) 6 cable(s) 1.5 mm² rigid

Environment
IP degree of protection	IP20
ambient air temperature for operation	-5…55 °C
ambient air temperature for storage	-40…80 °C
