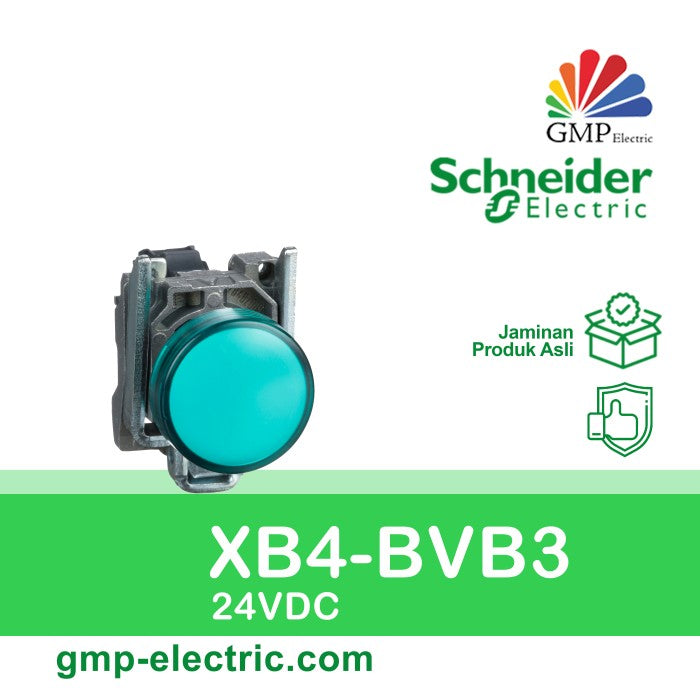

Pilot Lamp Schneider XB4-BVB3 22 mm Metal 24VAC/DC Green

Harmony XB4

Pilot light

XB4

Chromium plated metal

Zamak

22 mm

Standard

1

Round

Green

With plain lens

Protected LED

Integral LED

Green

24 V AC/DC 50/60 Hz

47 mm

30 mm

54 mm

(X1-X2)PL

0.08 kg

7000000 Pa at 55 °C, distance : 0.1 m

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1

250 V (pollution degree 3) conforming to EN 60947-1

4 kV EN 60947-1

Steady

18 mA

100000 h at rated voltage and 25 °C

1 kV conforming to IEC 61000-4-5

Complete product

19.2…30 V DC
21.6…26.4 V AC

TH

-40…70 °C

-40…70 °C

Class I conforming to IEC 60536

IP66 conforming to IEC 60529
IP67
IP69
IP69K

NEMA 13
NEMA 4X

IK06 conforming to IEC 50102

EN/IEC 60947-5-5
EN/IEC 60947-5-4
EN/IEC 60947-5-1
JIS C8201-5-1
UL 508
CSA C22.2 No 14
EN/IEC 60947-1
JIS C8201-1

CSA
UL listed

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

2 kV conforming to IEC 61000-4-4

10 V/m conforming to IEC 61000-4-3

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Class B conforming to IEC 55011
