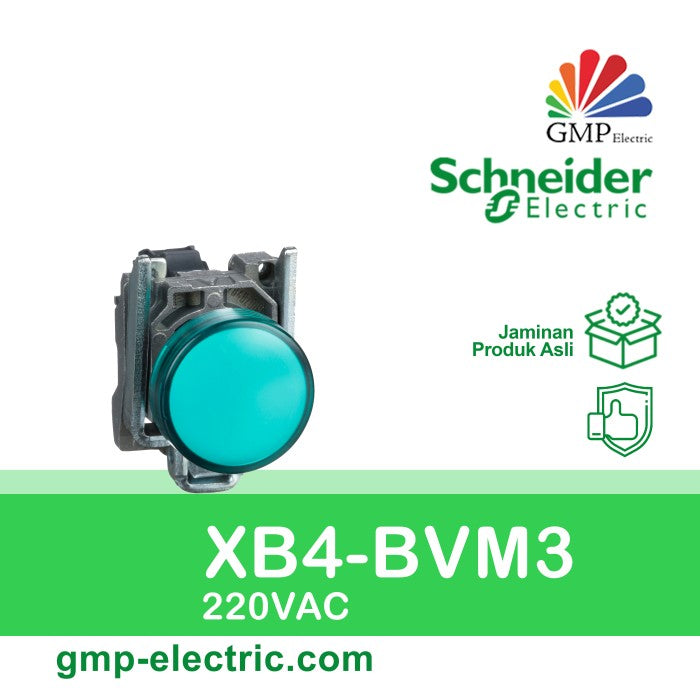

Pilot Lamp Schneider XB4-BVM3 22 mm Metal 220VAC Green

Roll over image to zoom in

Pilot Lamp Schneider XB4-BVM3 22 mm Metal 220VAC Green

Name: Pilot Lamp Schneider XB4-BVM3 22 mm Metal 220VAC Green
Brand: Schneider
SKU: 0005820
Price: 102800.0 IDR
Availability: InStock

Save 43%

SchneiderSKU: 0005820

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Main
range of product	Harmony XB4
product or component type	Pilot light
device short name	XB4
bezel material	Chromium plated metal
fixing collar material	Zamak
mounting diameter	22 mm
head type	Standard
sale per indivisible quantity	1
shape of signaling unit head	Round
cap/operator or lens colour	Green
operator additional information	With plain lens
light source	Protected LED
bulb base	Integral LED
light source colour	Green
[Us] rated supply voltage	230...240 V AC 50/60 Hz

Complementary
height	47 mm
width	30 mm
depth	54 mm
terminals description ISO n��1	(X1-X2)PL
net weight	0.08 kg
resistance to high pressure washer	7000000 Pa at 55 ��C, distance : 0.1 m
connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm�� with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm�� without cable end conforming to EN/IEC 60947-1
[Ui] rated insulation voltage	250 V (pollution degree 3) conforming to EN 60947-1
[Uimp] rated impulse withstand voltage	EN 60947-1 4 kV
signalling type	Steady
current consumption	14 mA
service life	100000 h at rated voltage and 25 ��C
surge withstand	1 kV conforming to IEC 61000-4-5
device presentation	Complete product
supply voltage limits	195��264 V AC

Environment
protective treatment	TH
ambient air temperature for storage	-40��70 ��C
ambient air temperature for operation	-40��70 ��C
electrical shock protection class	Class I conforming to IEC 60536
IP degree of protection	IP66 conforming to IEC 60529 IP67 IP69 IP69K
NEMA degree of protection	NEMA 13 NEMA 4X
IK degree of protection	IK06 conforming to IEC 50102
standards	JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-5-5 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-5-4 EN/IEC 60947-1 JIS C8201-1
product certifications	CSA UL listed
vibration resistance	5 gn (f= 12��500 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
resistance to fast transients	2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields	10 V/m conforming to IEC 61000-4-3
resistance to electrostatic discharge	6 kV on contact (on metal parts) conforming to IEC 61000-4-2 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
electromagnetic emission	Class B conforming to IEC 55011
