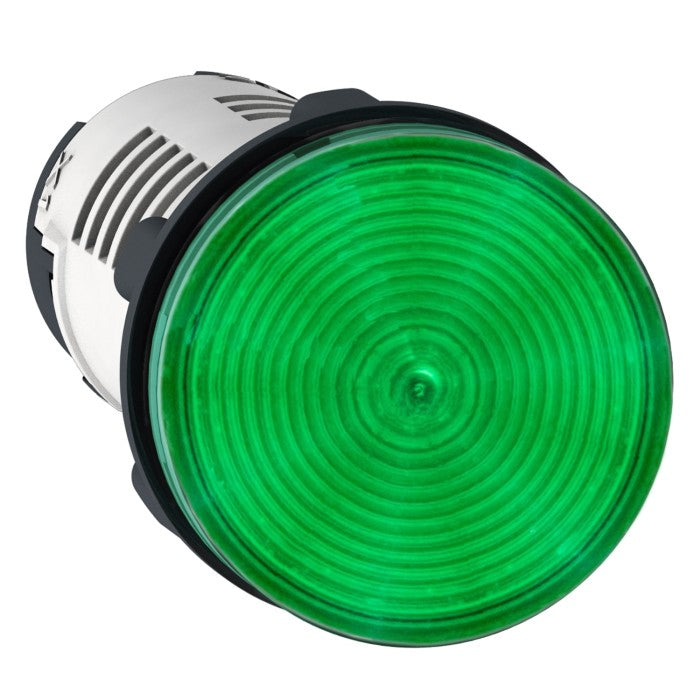

Pilot Lamp Schneider XB7-EV03MP 22 mm Monoblock 220VAC Green

Roll over image to zoom in

Pilot Lamp Schneider XB7-EV03MP 22 mm Monoblock 220VAC Green

SchneiderSKU: 0005832

Share this product

Main
range of product	Harmony XB7
product or component type	Pilot light
device short name	XB7
mounting diameter	22 mm
sale per indivisible quantity	10
shape of signaling unit head	Round
cap/operator or lens colour	Green
operator additional information	With plain lens
light source	LED
bulb base	Integral LED
[Us] rated supply voltage	230...240 V AC 50/60 Hz
device presentation	Monolithic product

Complementary
height	29 mm
width	29 mm
depth	54 mm
terminals description ISO n°1	(X1-X2)PL
net weight	0.02 kg
device mounting	Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
fixing center	>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
fixing mode	Fixing nut beneath head: 2…2.4 N.m
connections - terminals	Faston connectors, connection size: 1 x 6.35 mm conforming to EN/IEC 60947-1 Faston connectors, connection size: 2 x 2.8 mm conforming to EN/IEC 60947-1
[Ui] rated insulation voltage	250 V (pollution degree 3) conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage	EN/IEC 60947-1 6 kV
signalling type	Steady
supply voltage limits	195…264 V AC
current consumption	16...20 mA
service life	70000 h at rated voltage and 25 °C

Environment
protective treatment	TH
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-25…70 °C
overvoltage category	Class II conforming to IEC 60536
IP degree of protection	IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529
NEMA degree of protection	NEMA 4 conforming to UL 50 E NEMA 12 conforming to UL 50 E
standards	JIS C8201-5-1 CSA C22.2 No 14 EN/IEC 60947-1 UL 508 EN/IEC 60947-5-1 JIS C8201-1
vibration resistance	5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
electromagnetic compatibility	Disturbing field emission class B conforming to EN 55011
