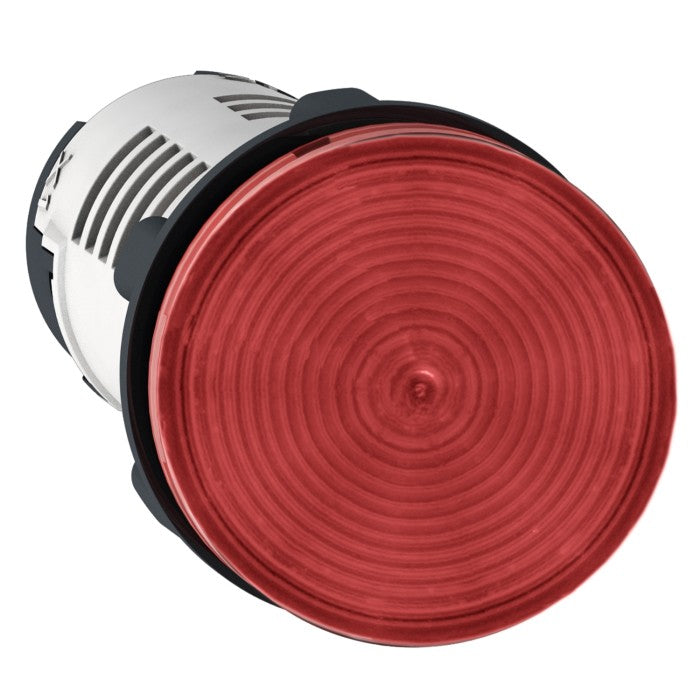

Pilot Lamp Schneider XB7-EV04MP 22 mm Monoblock 220VAC Red

Harmony XB7

Pilot light

XB7

22 mm

10

Round

Red

LED

Integral LED

230...240 V AC 50/60 Hz

Monolithic product

29 mm

29 mm

54 mm

(X1-X2)PL

0.02 kg

Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1

>= 30 x 40 mm (support panel) metal - thickness: 1���6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2���6 mm

Fixing nut beneath head: 2���2.4 N.m

Screw clamp terminals, <= 2 x 1.5 mm�� with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm�� without cable end conforming to EN/IEC 60947-1

0.8���1.2 N.m conforming to EN 60947-1

Cross compatible with JIS No 1 screwdriver
Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat �� 4 mm screwdriver
Slotted compatible with flat �� 5.5 mm screwdriver

250 V (pollution degree 3) conforming to EN/IEC 60947-1

EN/IEC 60947-1 6 kV

Steady

195���264 V AC

16...20 mA

70000 h at rated voltage and 25 ��C

TH

-40���70 ��C

-25���70 ��C

Class II conforming to IEC 60536

IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529

NEMA 4 conforming to UL 50 E
NEMA 12 conforming to UL 50 E

EN/IEC 60947-1
CSA C22.2 No 14
UL 508
JIS C8201-5-1
EN/IEC 60947-5-1
JIS C8201-1

5 gn (f= 2���500 Hz) conforming to IEC 60068-2-6

50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Disturbing field emission class B conforming to EN 55011
