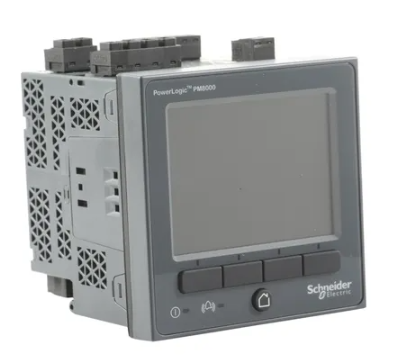

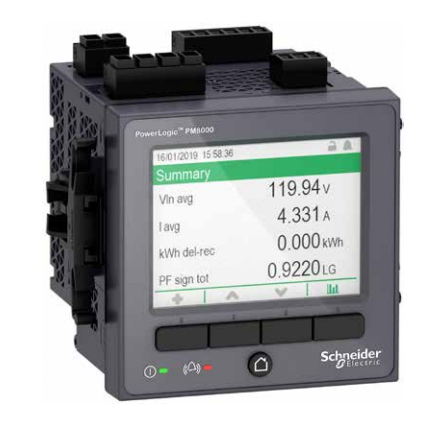

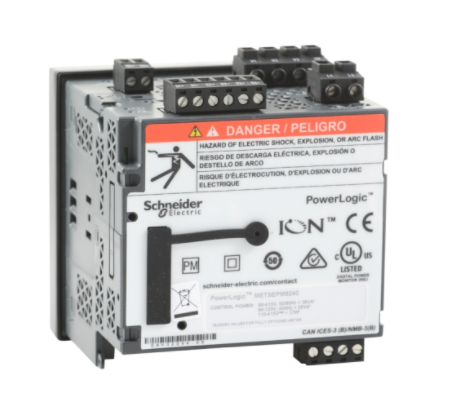

Power Meter Schneider METSEPM8240 Integrated display, Acc 0.2s Ethernet W96xH96mm

PowerLogic

PowerLogic PM8000

PM8240

Power meter

conforming to EN 50160: 2010 compliance report
conforming to IEEE 519: 2014 compliance report
conforming to IEC 61000-4-30: class S power quality measurement
up to the 63rd harmonic
harmonic distortion
waveform capture
voltage sag and swell detection
programmablity (logic and math functions)
conforming to IEC 62586 power quality monitoring

Power monitoring
WAGES metering

Current
Voltage
Frequency
Active and reactive power total
Apparent power total
Power factor total
Active and reactive power per phase, rms
Apparent power per phase, rms
Power factor per phase, rms

90...415 V AC 45...65 Hz +/- 10 %
110...415 V DC +/- 10 %

50 Hz
60 Hz

1 A
5 A
10 A

3P + N
3P
1P + N

18 VA at 415 V AC

Colour TFT LCD

320 x 240 pixels QVGA

256 samples/cycle

50…10000 mA

Voltage (impedance 5 MOhm)
Current (impedance 0.3 mOhm)

57…400 V AC 42...69 Hz between phase and neutral
100…690 V AC 42...69 Hz between phases

42…69 Hz

3 digital 30 V AC
3 digital 60 V DC

Current +/- 0.1 %
Voltage +/- 0.1 %
Active energy +/- 0.2 %

Class 0.2S active energy conforming to IEC 62053-22
Class 0.2 active energy conforming to ANSI C12.20
Class 0.2 active power conforming to IEC 61557-12
Class 0.5S reactive energy conforming to IEC 62053-24
Class 0.5 power factor conforming to IEC 61557-12
Class 0.2 voltage conforming to IEC 61557-12
Class 0.2 current conforming to IEC 61557-12

1 pulse

Voltage
Current
Frequency
Power
Energy consumption
Harmonic distortion

Modbus RTU at 115 kbauds - 2-wire
ION at 115 kbauds - 2-wire
DNP3
IEC 61850
Modbus TCP/IP
Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s
RSTP 801.1d 2004

Ethernet
Screw terminal block: RS485

IPv6 (internet protocol)

Min/max of instantaneous values
Waveform logs
Sequence of event recording
Time stamping
Alarm logs
Trending/forecasting
Sag and swell logs
Harmonics logs
GPS synchronisation
Data logs
Event logs

512 MB

Customizable home page
File upload/download via FTP
File upload/download via SFTP
Web server
Alarm notification by e-mail
Viewing of captured waveform (FTP)
Viewing of captured waveform (web)
HTTPS server

SMTP e-mail notification
RSTP support
NTP time synchronization
DHCP
PTP time synchronization

Enable/disable communication ports
Password protection
Syslog protocol support
Robust security logs
Port hardening

Flush-mounted

Framework

III

III, 400…690 V conforming to IEC 61010-1:ed. 3
III, 400…690 V conforming to EN 61010-1:ed. 3
III, 347…600 V conforming to UL 61010-1:ed. 3
III, 347…600 V conforming to CSA C22.2 No 61010-1:ed. 3

IEC 61557-12
IEC 62052-11
IEC 62053-24
IEC 62053-22
IEEE 1588
IEC 62586-2
IEC 61326-1

CE
CULus
N998

96 mm

77.5 mm

96 mm

581 g

Electrostatic discharge conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test conforming to IEC 61000-4-3
Electrical fast transient/burst immunity test conforming to IEC 61000-4-4
Surge immunity test conforming to IEC 61000-4-5
Conducted RF disturbances conforming to IEC 61000-4-6
Magnetic field at power frequency conforming to IEC 61000-4-8
Voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Immunity to impulse waves conforming to IEC 61000-4-12
Conducted and radiated emissions conforming to EN 55022
Conducted and radiated emissions conforming to EN 55011
Conducted and radiated emissions conforming to FCC part 15
Conducted and radiated emissions conforming to ICES-003
Conducted RF disturbances (2...150 Hz) conforming to CLC/TR 50579
Surge withstand conforming to IEEE C37.90.1

IP54 front: conforming to IEC 60529
IP30 body: conforming to IEC 60529

5…95 %

-25…70 °C

-40…85 °C

3000 m

0.954 kg

1400 mm

1400 mm

1850 mm

Green Premium product

Compliant
EU RoHS Declaration

Yes

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
