SPESIFIKASI PRODUK
-
Brand: OMRON
-

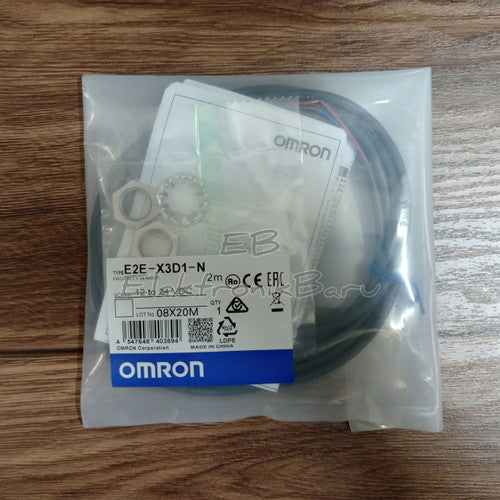

Model: E2E-X3D1-N
-
Series: E2E
-
Type: Inductive Proximity Sensor
-
Bentuk: Cylindrical dengan ulir
-
Ukuran Sensor: M12
-
Tipe: Shielded
-
Connection: DC 2-Wire
-
Sensing Distance: 3 mm ±10%
-
Setting Distance: 0–2,4 mm
-
Operation Mode: NO (Normally Open)
-
Supply Voltage: 10–30VDC
-
Detectable Object: Ferrous Metal / Logam Ferrous
-
Standard Sensing Object: Besi 12 × 12 × 1 mm
-
Response Frequency: 1.000 Hz
-
Leakage Current: Maks. 0,8 mA
-
Load Current: 3–100 mA
-
Residual Voltage: Maks. 3V
-
Indicator: Operation Indicator Orange + Setting Indicator Green
-
Protection: Output Short-circuit Protection & Surge Suppressor
-
Operating Temperature: -25°C hingga +70°C
-
Operating Humidity: 35–95% RH
-
Cable: Pre-wired
KEUNGGULAN
✓ Brand Omron Terpercaya
✓ Sensing distance 3 mm
✓ Supply 10–30VDC
✓ Sistem 2 Wire yang praktis
✓ Output NO (Normally Open)
✓ Bentuk cylindrical M12
✓ Tipe Shielded
✓ Response frequency hingga 1.000 Hz
✓ Dapat mendeteksi objek tanpa kontak fisik
✓ Dilengkapi protection circuit
✓ Kabel pre-wired 2 meter
✓ Cocok untuk industrial automation dan mesin produksi
BERAT PRODUK
Perkiraan ±50–70 gram/unit
