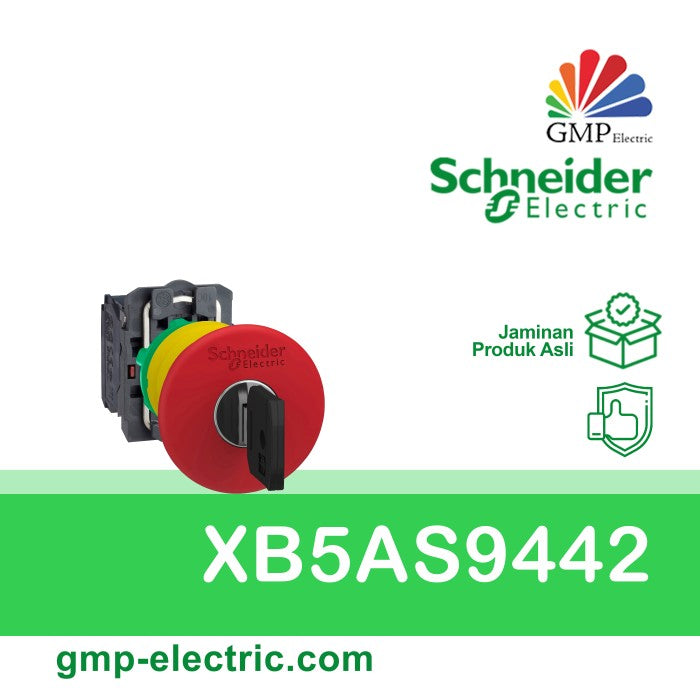

Push Button Switch Schneider XB5-AS9442 22 mm Plastic Mushroom Push Lock Key to Release Red 1NC

Harmony XB5

Emergency stop push-button
Emergency switching off push-button

XB5

Dark grey plastic

Plastic

Standard

22 mm

1

Round

trigger action and mechanical latching

Key release

Red mushroom �� 40 mm, unmarked

Ronis 455

Center

1 NC

Slow-break

Screw clamp terminals, <= 2 x 1.5 mm�� with cable end conforming to EN 60947-1
Screw clamp terminals, >= 1 x 0.22 mm�� without cable end conforming to EN 60947-1

Complete product

43 mm

40 mm

100 mm

(11-12)NC

0.075 kg

7000000 Pa at 55 ��C, distance : 0.1 m

Standard contacts

With conforming to EN/IEC 60947-5-1 appendix K

1.5 mm (NC changing electrical state)
4.3 mm (total travel)

300000 cycles

0.8���1.2 N.m conforming to EN 60947-1

Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat �� 4 mm screwdriver
Slotted compatible with flat �� 5.5 mm screwdriver

Silver alloy (Ag/Ni)

10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

10 A conforming to EN/IEC 60947-5-1

600 V (pollution degree 3) conforming to EN 60947-1

EN 60947-1 6 kV

3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

�� < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
�� < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

TH

-40���70 ��C

-40���70 ��C

Class II conforming to IEC 60536

IP66 conforming to IEC 60529
IP67
IP69
IP69K

NEMA 13
NEMA 4X

IK03 conforming to IEC 50102

JIS C8201-5-1
EN/IEC 60947-5-5
EN/IEC 60947-1
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/ISO 13850
EN/IEC 60204-1
UL 508
IEC 60364-5-53
EN/IEC 60947-5-4
JIS C8201-1

DNV
CSA
UL listed
LROS (Lloyds register of shipping)
RINA
BV
GL

5 gn (f= 2���500 Hz) conforming to IEC 60068-2-6

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
