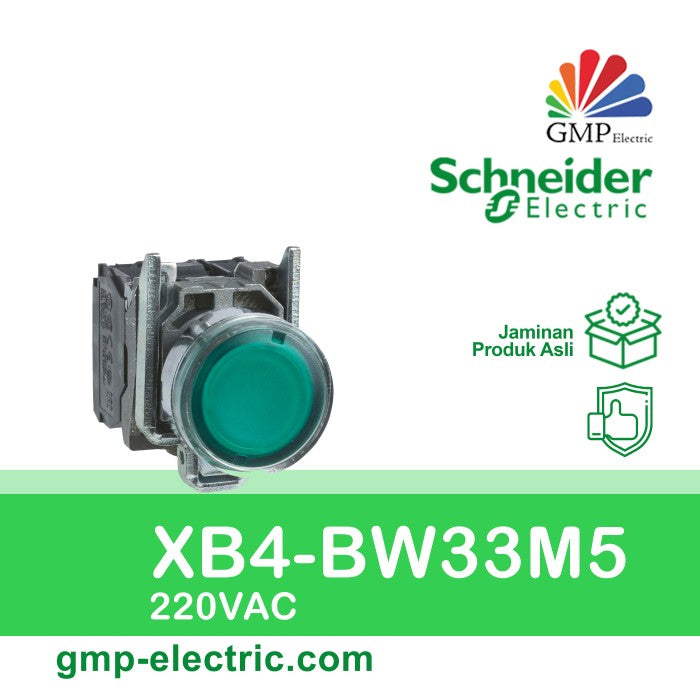

Push Lamp Schneider XB4-BW33M5 22 mm Metal Momentary 220VAC Green 1NO+1NC

Harmony XB4

Illuminated push-button

XB4

Chromium plated metal

Zamak

22 mm

1

Standard

Round

spring return

Green flush

With plain lens

1 NO + 1 NC

Slow-break

Screw clamp terminals, <= 2 x 1.5 mm�� with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm�� without cable end conforming to EN/IEC 60947-1

Protected LED

Integral LED

220...240 V AC at 50/60 Hz

47 mm

30 mm

57 mm

(13-14)NO
(21-22)NC

0.097 kg

7000000 Pa at 55 ��C, distance : 0.1 m

Standard contacts

With conforming to EN/IEC 60947-5-1 appendix K

1.5 mm (NC changing electrical state)
2.6 mm (NO changing electrical state)
4.3 mm (total travel)

3.5 N NC changing electrical state
3.8 N

10000000 cycles

0.8���1.2 N.m conforming to EN 60947-1

Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat �� 4 mm screwdriver
Slotted compatible with flat �� 5.5 mm screwdriver

Silver alloy (Ag/Ni)

10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1

10 A conforming to EN/IEC 60947-5-1

600 V (pollution degree 3) conforming to EN/IEC 60947-1

6 kV EN/IEC 60947-1

3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1

1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

�� < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
�� < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4

Steady

14 mA

100000 h at rated voltage and 25 ��C

1 kV conforming to IEC 61000-4-5

195���264 V AC

Complete product

TH

-40���70 ��C

-40���70 ��C

Class I conforming to IEC 60536

IP66 conforming to IEC 60529
IP67
IP69
IP69K

NEMA 13
NEMA 4X

IK06 conforming to IEC 50102

UL 508
EN/IEC 60947-5-1
CSA C22.2 No 14
EN/IEC 60947-1
EN/IEC 60947-5-5
JIS C8201-5-1
EN/IEC 60947-5-4
JIS C8201-1

RINA
BV
LROS (Lloyds register of shipping)
DNV
GL
UL listed
CSA

5 gn (f= 2���500 Hz) conforming to IEC 60068-2-6

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

2 kV conforming to IEC 61000-4-4

10 V/m conforming to IEC 61000-4-3

6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Class B conforming to IEC 55011
