| range of product |
Zelio Control
|
|
|---|---|---|
| product or component type |
Modular measurement and control relays
|
|
| relay type |
Control relay
|
|
| network number of phases |
3 phases
|
|
| relay name |

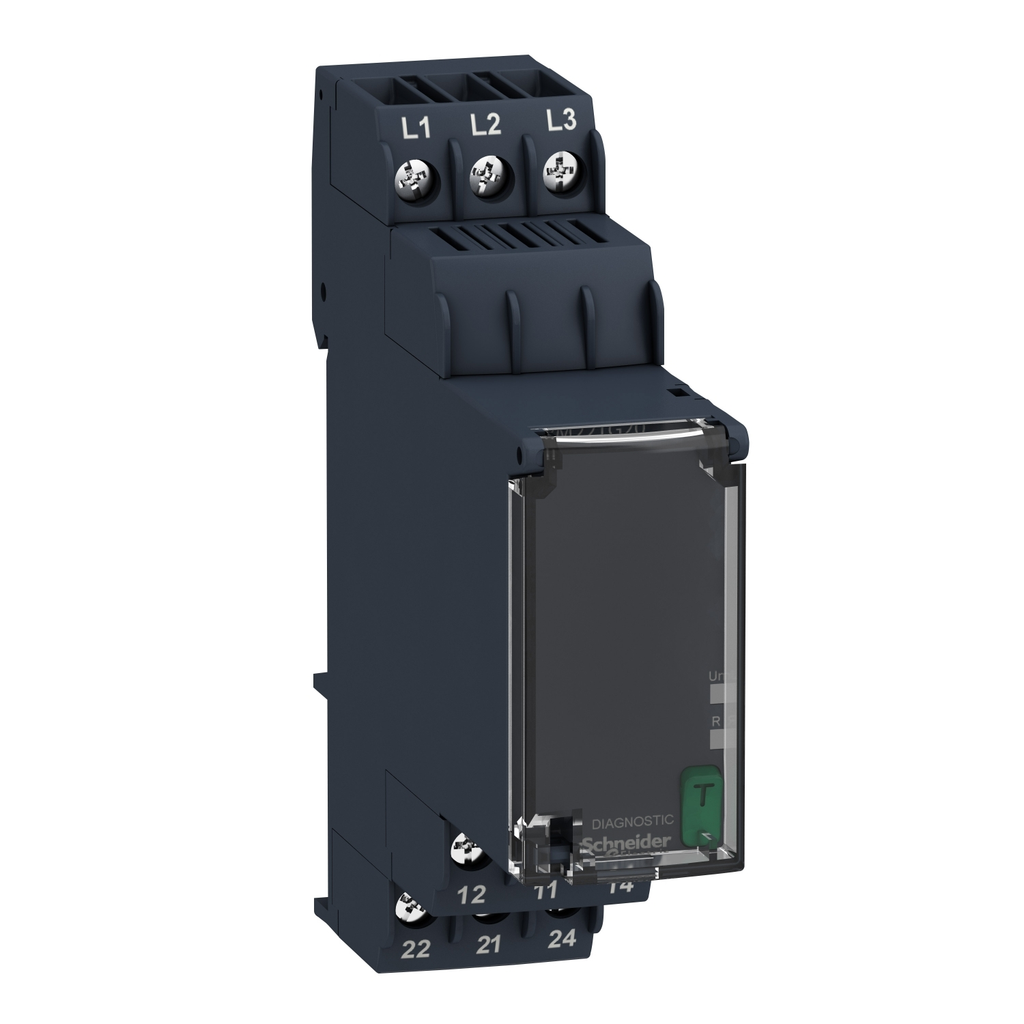

RM22TG
|
|
| relay monitored parameters |
Phase sequence
Phase failure detection (2 or more phase cut) |
|
| time delay type |
Without
|
|
| switching capacity in VA |
2000 VA
|
|
| measurement range |
183...528 V voltage AC
|
| reset time |
1500 ms at maximum voltage
|
|
|---|---|---|
| maximum switching voltage |
250 V AC
|
|
| minimum switching current |
10 mA at 5 V DC
|
|
| maximum switching current |
8 A AC
|
|
| [Us] rated supply voltage |
208...480 V AC
|
|
| supply voltage limits |
183…528 V AC
|
|
| operating limits |
183...528 V AC
|
|
| power consumption in VA |
15 VA at 480 V AC 60 Hz
|
|
| voltage detection threshold |
< 100 V AC
|
|
| supply voltage frequency |
50...60 Hz +/- 10 %
|
|
| output contacts |
2 C/O
|
|
| run-up delay at power-up |
650 ms
|
|
| response time |
<= 200 ms
|
|
| overvoltage category |
III conforming to IEC 60664-1
III conforming to UL 508 |
|
| insulation resistance |
> 100 MOhm at 500 V DC conforming to IEC 60255-27
|
|
| mounting position |
Any position
|
|
| connections - terminals |
Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
|
| tightening torque |
0.6…1 N.m conforming to IEC 60947-1
|
|
| housing material |
Self-extinguishing plastic
|
|
| status LED |
LED (yellow)relay ON
LED (green)power ON |
|
| mounting support |
35 mm DIN rail conforming to EN/IEC 60715
|
|
| electrical durability |
100000 cycles
|
|
| mechanical durability |
10000000 cycles
|
|
| utilisation category |
AC-15 conforming to IEC 60947-5-1
DC-13 conforming to IEC 60947-5-1 AC-1 conforming to IEC 60947-4-1 DC-1 conforming to IEC 60947-4-1 |
|
| safety reliability data |
MTTFd = 924.6 years
B10d = 850000 |
|
| contacts material |
Cadmium free
|
|
| width |
22.5 mm
|
|
| net weight |
0.09 kg
|
| immunity to microbreaks |
10 ms
|
|
|---|---|---|
| electromagnetic compatibility |
Immunity for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-1
Immunity for industrial environments conforming to EN/IEC 61000-6-2 Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3 Emission standard for industrial environments conforming to EN/IEC 61000-6-4 Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4 Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5 Conducted and radiated emissions class B group 1 conforming to CISPR 11 Conducted and radiated emissions class B conforming to CISPR 22 |
|
| standards |
EN/IEC 60255-1
|
|
| product certifications |
CE
EAC RCM GL CSA UL CCC |
|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-20…50 °C at 60 Hz
-20…60 °C at 50 Hz AC/DC |
|
| relative humidity |
93…97 % at 25…55 °C conforming to IEC 60068-2-30
|
|
| vibration resistance |
0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6
1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6 0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6 |
|
| shock resistance |
15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27 |
|
| IP degree of protection |
IP20 (terminals) conforming to IEC 60529
IP40 (housing) conforming to IEC 60529 IP50 (front panel) conforming to IEC 60529 |
|
| pollution degree |
3 conforming to IEC 60664-1
3 conforming to UL 508 |
|
| dielectric test voltage |
2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
|
