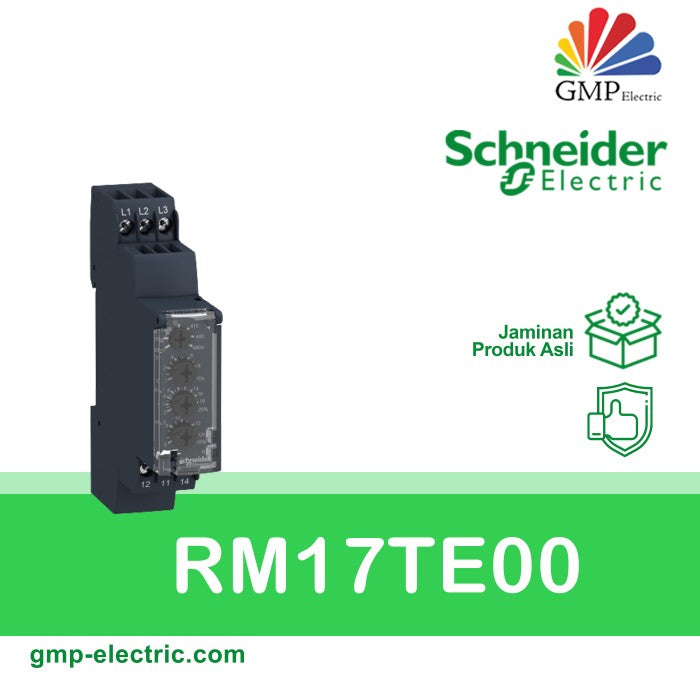

Relay Phase Schneider Hilang/Urutan/Asimetri Fase +Ov/und.volt RM17TE00 (1C/O 5A) 208-480

Roll over image to zoom in

Relay Phase Schneider Hilang/Urutan/Asimetri Fase +Ov/und.volt RM17TE00 (1C/O 5A) 208-480

SchneiderSKU: 0015792

Share this product

Main
range of product	Zelio Control
product or component type	Modular measurement and control relays
relay type	Multifunction control relay
product specific application	For 3-phase supply
relay name	RM17TE
relay monitored parameters	Undervoltage and overvoltage in window mode Asymmetry Phase sequence Phase failure detection
time delay	Adjustable 0.1...10 s, +/- 10 % of the full scale value
switching capacity in VA	1250 VA
measurement range	208...480 V voltage AC

Complementary
reset time	1500 ms time delay
maximum switching voltage	250 V AC 250 V DC
minimum switching current	10 mA at 5 V DC
maximum switching current	5 A AC 5 A DC
supply voltage limits	183…528 V AC
control circuit voltage limits	- 12 % + 10 % Un
power consumption in VA	0…22 VA at 400 V AC 50 Hz
control circuit frequency	50...60 Hz +/- 10 %
output contacts	1 C/O
nominal output current	5 A
measurement voltage limits	183…528 V AC
hysteresis	2 %
delay at power up	650 ms
maximum measuring cycle	150 ms measurement cycle as true rms value
threshold adjustment voltage	-2...-17 % in the range 220 V AC +2...+17 % in the range 480 V AC -2...-12 % in the range 208 V AC 2...20 % of Un selected
voltage range	208...480 V phase to phase
adjustment of asymmetry threshold	5...15 % of Un selected
repeat accuracy	0.5 % for input and measurement circuit 3 % for time delay
measurement error	< 0.05 %/°C with temperature variation < 1 % over the whole range with voltage variation
phase failure sensitivity	0.7 Un
response time	< 200 ms (in the event of a fault)
marking	CE
overvoltage category	III conforming to IEC 60664-1
insulation resistance	> 500 MOhm at 500 V DC conforming to IEC 60255-5 > 500 MOhm at 500 V DC conforming to IEC 60664-1
[Ui] rated insulation voltage	400 V conforming to IEC 60664-1
supply frequency	50/60 Hz +/- 10 %
operating position	Any position without derating
connections - terminals	Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
tightening torque	0.6…1 N.m conforming to IEC 60947-1
housing material	Self-extinguishing plastic
local signalling	LED (green) for power ON LED (yellow) for relay ON
mounting support	35 mm symmetrical DIN rail conforming to EN/IEC 60715
electrical durability	100000 cycles
mechanical durability	30000000 cycles
operating rate	<= 360 operations/hour full load
utilisation category	AC-12 conforming to IEC 60947-5-1 AC-13 conforming to IEC 60947-5-1 AC-14 conforming to IEC 60947-5-1 AC-15 conforming to IEC 60947-5-1 DC-12 conforming to IEC 60947-5-1 DC-13 conforming to IEC 60947-5-1
safety reliability data	MTTFd = 502.2 years B10d = 470000
width	17.5 mm
net weight	0.13 kg

Environment
electromagnetic compatibility	Emission standard for industrial environments conforming to EN/IEC 61000-6-4 Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3 Immunity for industrial environments conforming to EN/IEC 61000-6-2
standards	EN/IEC 60255-1
product certifications	GOST C-Tick CSA UL GL
directives	89/336/EEC - electromagnetic compatibility 73/23/EEC - low voltage directive
ambient air temperature for storage	-40…70 °C
ambient air temperature for operation	-20…50 °C
relative humidity	95 % at 55 °C conforming to IEC 60068-2-30
vibration resistance	0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6 1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1
shock resistance	15 gn for 11 ms conforming to IEC 60255-21-1
IP degree of protection	IP20 (terminals) conforming to IEC 60529 IP30 (casing) conforming to IEC 60529
pollution degree	3 conforming to IEC 60664-1
dielectric test voltage	2 kV, 1 min AC 50 Hz conforming to IEC 60255-5 2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
non-dissipating shock wave	4 kV conforming to IEC 60255-5 4 kV conforming to IEC 60664-1 4 kV conforming to IEC 61000-4-5
