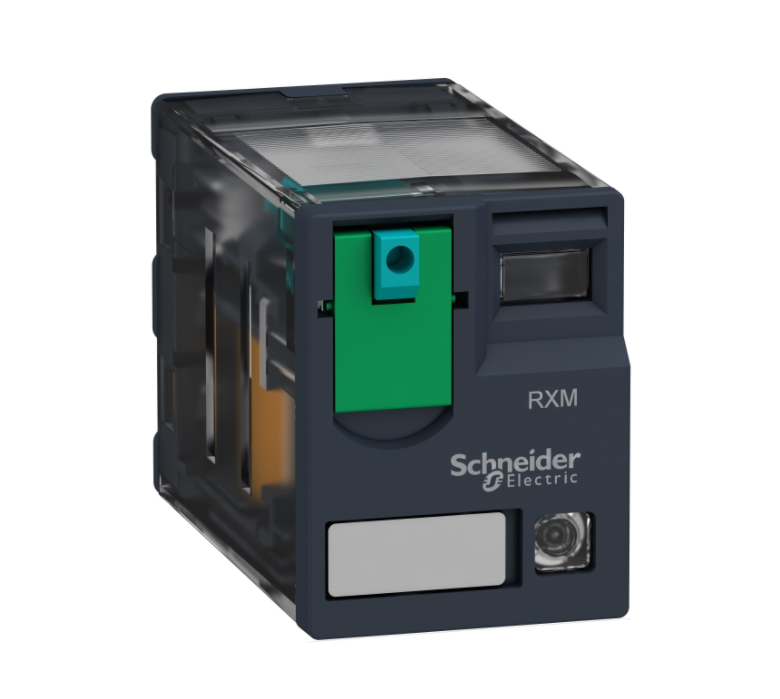

Relay Schneider RXM2AB2BD 24VDC, LED Indicator, 2 C/O 12A 250VAC

Harmony Relay

Miniature

Plug-in relay

RXM

2 C/O

24 V DC

12 A at -40…55 °C

With

Lockable test button

20 %

Flat

250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL

4 kV during 1.2/50 µs

AgNi

12 A at 28 V (DC) NO conforming to IEC
12 A at 250 V (AC) NO conforming to IEC
6 A at 28 V (DC) NC conforming to IEC
6 A at 250 V (AC) NC conforming to IEC
12 A at 28 V (DC) conforming to UL
12 A at 277 V (AC) conforming to UL

250 V conforming to IEC

12 A at 250 V AC
12 A at 28 V DC

3000 VA/336 W

170 mW at 10 mA, 17 V

<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load

10000000 cycles

100000 cycles for resistive load

0.9 W

>= 0.1 Uc

20 ms

20 ms

650 Ohm at 20 °C +/- 10 %

19.2...26.4 V DC

B10d = 100000

RT I

Level A group mounting

Any position

0.037 kg

Complete product

1300 V AC between contacts with micro disconnection
2000 V AC between coil and contact
2000 V AC between poles

GOST
UL
Lloyd's
CSA
CE

CSA C22.2 No 14
EN/IEC 61810-1
UL 508

-40…85 °C

-40…55 °C

3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation
5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating

IP40 conforming to EN/IEC 60529

10 gn for in operation
30 gn for not operating

3

390 g

410 mm

280 mm

210 mm
