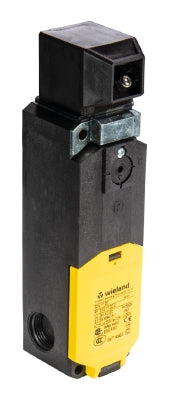

SAFETY SWITCH SIN 1120 AC/DC 24V Wieland R1.310.1120.0

Safety switch with separated actuator and guard locking, spring-actuated, 1500 N, 2 NC / 2 NO contacts

Dimensions

Length packed	185 mm
Width packed	100 mm
Height packed	62 mm
Gross weight packed	435 g
Net weight single part	427.7 g
Volume packed	1147 ccm



Certificates / Approvals

Electrical data - contact elements

Protection class	II
Rated insulation voltage Ui	250 V
Rated impulse voltage	2.5 kV
Direct opening action	yes
Short-circuit protective device	4 A gl

Electrical data - magnets

Protection class	II
Duty cicle​	100% ED (at E1; E2)
Temperature class​	F (155°C)
Power consumption	4.4 VA
Switch operatings permanent	600 1/h
Operating voltage	24 V

Mechanical Data

Housing material	Thermoplastic GV (UL94-V0)
Cover material	Thermoplastic GV (UL94-V0)
Actuating head material	Thermoplastic GV / ZN-GD​
Separate actuator	yes
Drawing force	> 27 N
Interlocking principle	Spring force
Hold on force​	< 1500 N
Min. ambient temperature	-25 °C
Max. ambient temperature	70 °C
Switching principle contact elements	4 slow-action contacts max.
Mechanical life	106 switching cycles
Fastening	4 x M5
Connection type	spring clamp connection
Max. conductor cross section (flex., stranded)	0.5 mm²
Max. conductor cross section (flex., stranded)	1.5 mm²
Cable entry	3 x M20x1,5
Weight	0.35 kg
Installation position	operator definable
Degree of protection (IP)	IP67

Classification

ECLASS 11
ECLASS 8.1	27270611
ETIM 7.0	EC002593
ETIM 6.0	EC002593
ETIM 5.0	EC002593
ETIM 4.0	EC002593

Product compliance

ROHS conformity status	Compliant
REACH-SVHC conformity status	Compliant
