Description

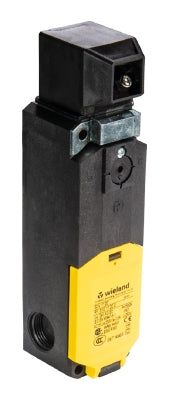

Safety switch with separated actuator and guard locking, magnet-actuated, 1500 N, 2 NC / 2 NO contacts
Commercial data
| Article number | R1.310.2150.0 |
|---|---|
| Article description | Safety switch SIN 2150 AC/DC 24V |
| EAN | 4049088135347 |
| Order Unit | 1 piece(s) |
| Country of origin | DE |
| Customs tariff number | 85365080 |
Dimensions
| Length packed | 185 mm |
|---|---|
| Width packed | 100 mm |
| Height packed | 62 mm |
| Gross weight packed | 440 g |
| Net weight single part | 340.74 g |
| Volume packed | 1147 ccm |
| Certificates / Approvals |  |
 |
 |
Electrical data - contact elements
| Protection class | II |
|---|---|
| Rated insulation voltage Ui | 250 V |
| Rated impulse voltage | 2.5 kV |
| Direct opening action | yes |
| Protection class | II |
|---|---|
| Duty cicle | 100% ED (at E1; E2) |
| Temperature class | F (155°C) |
| Power consumption | 4.4 VA |
| Switch operatings permanent | 600 1/h |
| Operating voltage | 24 V |
| Housing material | Thermoplastic GV (UL94-V0) |
|---|---|
| Cover material | Thermoplastic GV (UL94-V0) |
| Actuating head material | Thermoplastic GV / ZN-GD |
| Drawing force | > 27 N |
| Hold on force | < 1500 N |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 70 °C |
| Switching principle contact elements | 4 slow-action contacts max. |
| Fastening | 4 x M5 |
| Connection type | spring clamp connection |
| Max. conductor cross section (flex., stranded) | 0.5 mm² |
| Max. conductor cross section (flex., stranded) | 1.5 mm² |
| Cable entry | 3 x M20x1,5 |
| Weight | 0.35 kg |
| Installation position | operator definable |
| Degree of protection (IP) | IP67 |
| ECLASS 11 | |
|---|---|
| ECLASS 8.1 | 27270611 |
| ETIM 7.0 | EC002593 |
| ETIM 6.0 | EC002593 |
| ETIM 5.0 | EC002593 |
| ETIM 4.0 | EC002593 |
| ROHS conformity status | Compliant |
|---|---|
| REACH-SVHC conformity status | Compliant |
