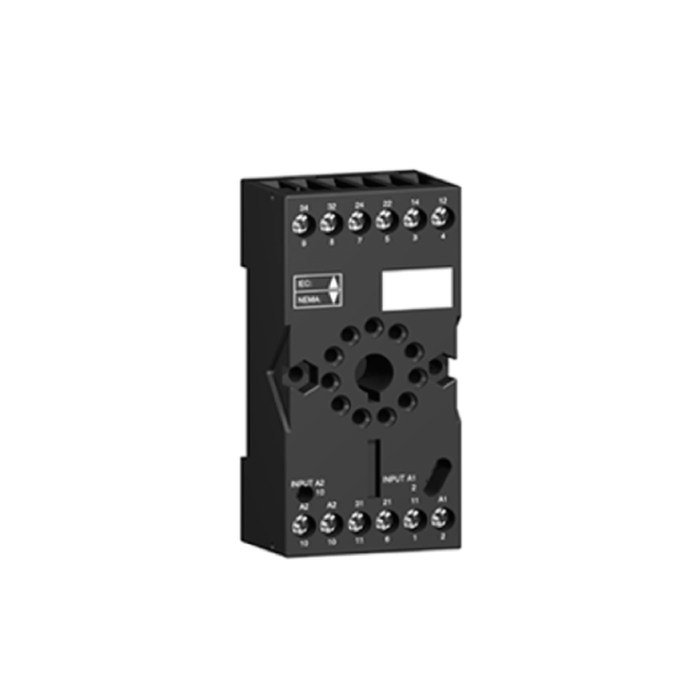

Socket Relay Schneider RUZC3M 11 Pin (u/RUMC)

Harmony Relay

Socket

Mixed

Plug-in relay RUM with 3 C/O contact
Plug-in relay RE48A with 2 C/O contact

Cylindrical

RUZ

10

10 A

< 250 V

< 1 N.m for M3.5 screw(s)

By screw (panel)
Clip-on (35 mm symmetrical DIN rail)

CE

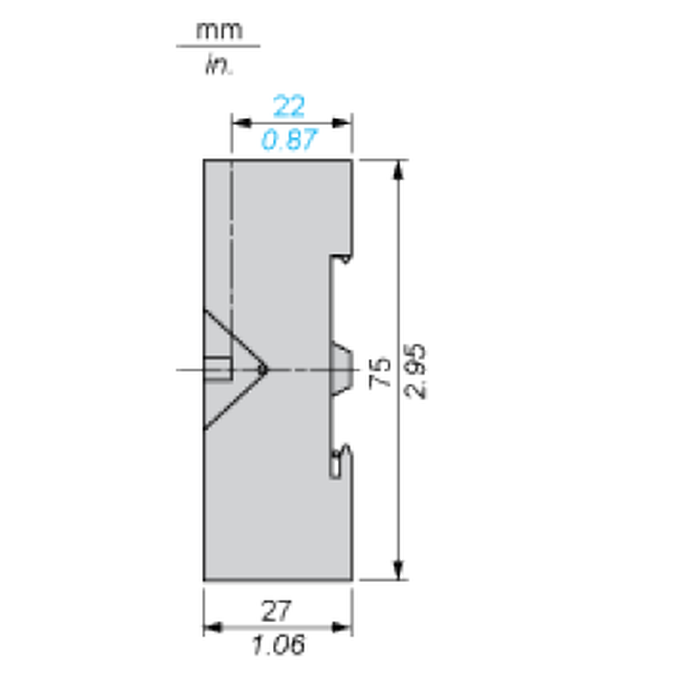

38 mm

0.054 kg

Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end
Connector, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
Connector, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end

IEC 61984

CSA
UL

-40…85 °C

-40…55 °C

IP20 conforming to EN/IEC 60529

2500 V
