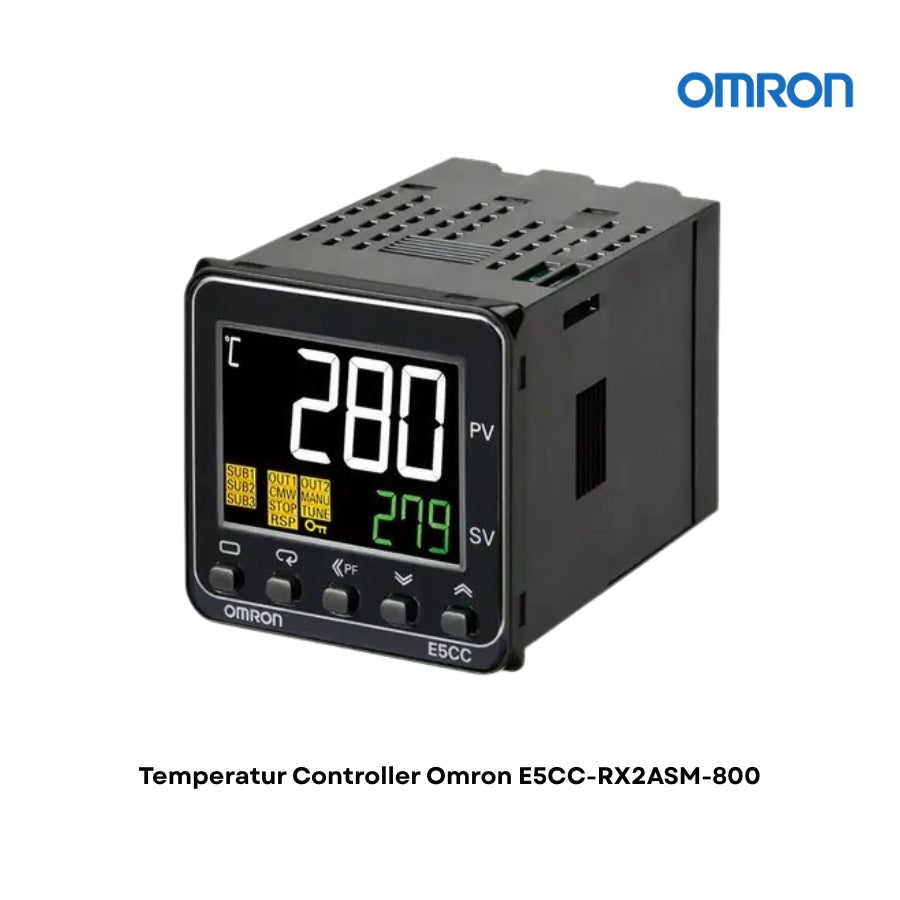

Digital Temperature Controller
Type : E5CC
Brand : Omron
Size : 48x48 mm
Sensor Input : Universal Input
Temperature input
Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II
Platinum resistance thermometer: Pt100 or JPt100
Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C
Analog input
Current input: 4 to 20 mA or 0 to 20 mA
Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V,or 0 to 50 mV (The 0 to 50 mV range applies to the E5CC-U only for those manufactured in May 2014 or later.)
Output : 1 Output Relay SPST-NO 250VAC, 3A (resistive load)
2 Auxilary Output SPST-NO Relay Output 250VAC 3A(resistive load)
Controller Mode : Heating and Cooling Control
Ambient operating : −10 to 55°C, humidity 25% to 85%
Altitude : 2.000 m max.
