Description
Art # : 56.203.7055.0

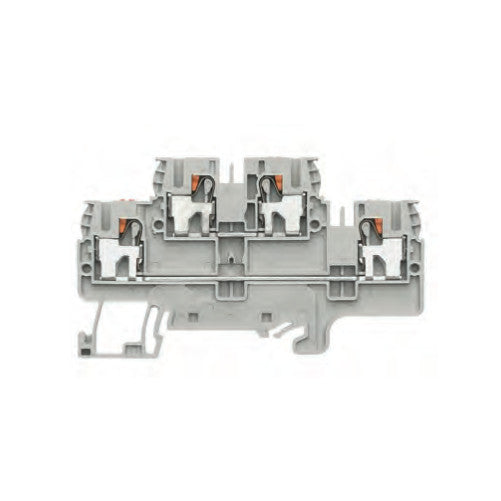

Description : Multi-tier terminal WTP 2,5/4 E
Nominal cross section : 4 mm2
Color : Grey
Number of level : 2
Width : 5mm
Insulating housing : PA666
Inflammability class of insulation material acc. with UL94 : V0
Technical Data
Rated current : 24A 500V, 6kV
Pollution degree : 3
Length : 82 mm
Connection type : Plug-in
Min/Max cross section : 0.2mm2 - 4mm2 (solid & serabut)
Technical Data UL/CSA
Cross section UL : 24-12 AWG
Voltage UL : 600V
Current field wiring : 20A
Voltage CSA : 600V
Current CSA : 20A
