Description

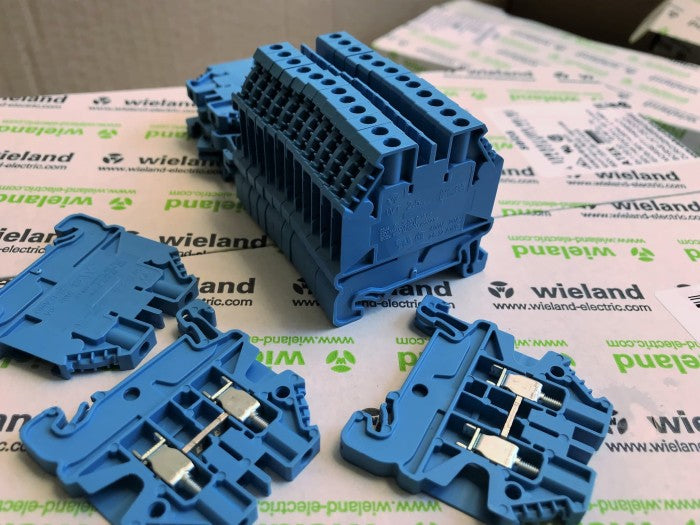

FEED-THROUGH TERMINAL WT 4 BL
Art # : 58.50355.6
Description : Feed-through terminal WT 2.5 BL
Nominal cross section : 2.5 mm2
Color : Blue
Width : 5mm
Insulating housing : PA666
Inflammability class of insulation material acc. with UL94 : V0
Technical data
Rated : 24A 1000V, 8kV
Pollution degree : 3
Length : 48 mm
Width : 5 mm
Height : 4 8mm
Connection Type : Screw Connection
Min/Max cross section : 0.14 mm2 - 4 mm2 (Solid & Serabut)
Wire Strip Length : 9 mm
Torque conductor mounting : 0.4 Nm
Technical Data UL/CSA
Cross section UL : 26-12 AWG
Voltage UL : 600V
Current factory wiring : 20A
Current field wiring : 20A
Cross section CSA : 26-12 AWG
Voltage CSA : 600V
Current CSA : 20A
