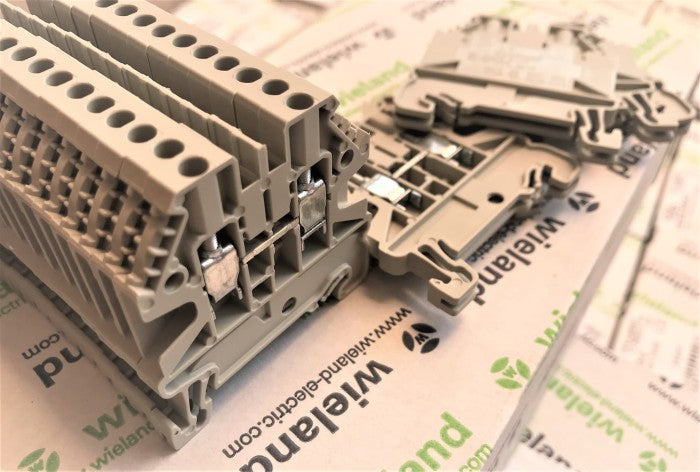

Terminal Blok Wieland (58.504.0055.0) WT-4 4mm screw Grey

FEED-THROUGH TERMINAL WT 4

Art # : 58.504.0055.0
Description : Feed-through terminal WT 4
Nominal cross section : 4 mm2
Color : Grey
Width : 6 mm
Insulating housing : PA666
Inflammability class of insulation material acc. with UL94 : V0

Technical data

Rated : 32A 1000V, 8kV
Pollution degree : 3
Length : 48 mm
Connection Type : Screw Connection
Min/Max cross section : 0.14 mm2 - 6 mm2 (Solid & Serabut)
Wire Strip Length : 9 mm
Torque conductor mounting : 0.5 Nm

Technical Data UL/CSA

Cross section UL : 20-10 AWG
Voltage UL : 600V
Current factory wiring : 30A
Current field wiring : 30A
Cross section CSA : 20-10 AWG
Voltage CSA : 600V
Current CSA : 30A
