Description

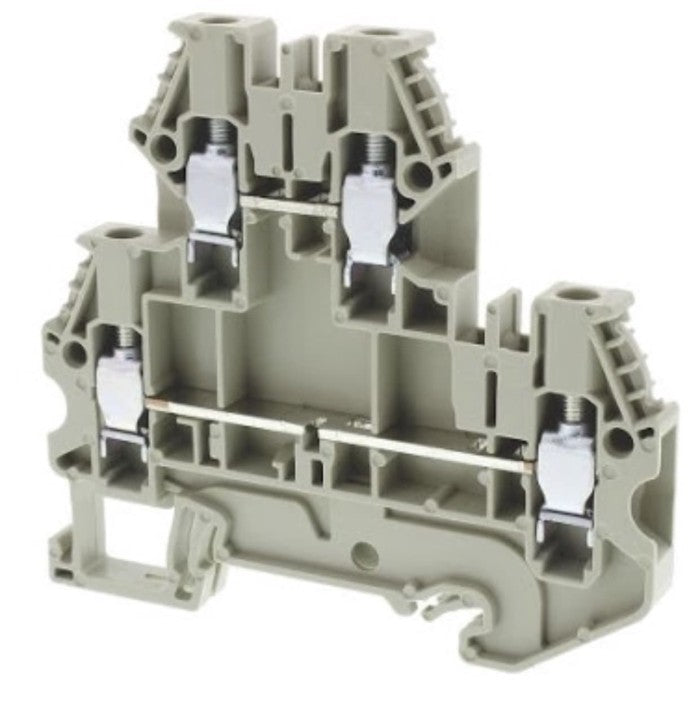

MULTI-TIER TERMINAL WT 4 E
Art # : 58.504.7055.0
Description : Multi-tier terminal WT 4 E
Nominal cross section : 4 mm2
Color : Grey
Width : 6mm
Insulating housing : PA666
Inflammability class of insulation material acc. with UL94 : V0
Technical data
Rated : 32A 800V, 8kV
Pollution degree : 3
Length : 73 mm
Width : 6 mm
Height : 48 mm
Connection Type : Screw Connection
Min/Max cross section : 0.14 mm2 - 6 mm2 (Solid & Serabut)
Wire Strip Length : 9 mm
Torque conductor mounting : 0.5 Nm
Technical Data UL/CSA
Cross section UL : 26-10 AWG
Voltage UL : 600V
Current factory wiring : 30A
Current field wiring : 30A
Cross section CSA : 26-10 AWG
Voltage CSA : 600V
Current CSA : 30A
