Description

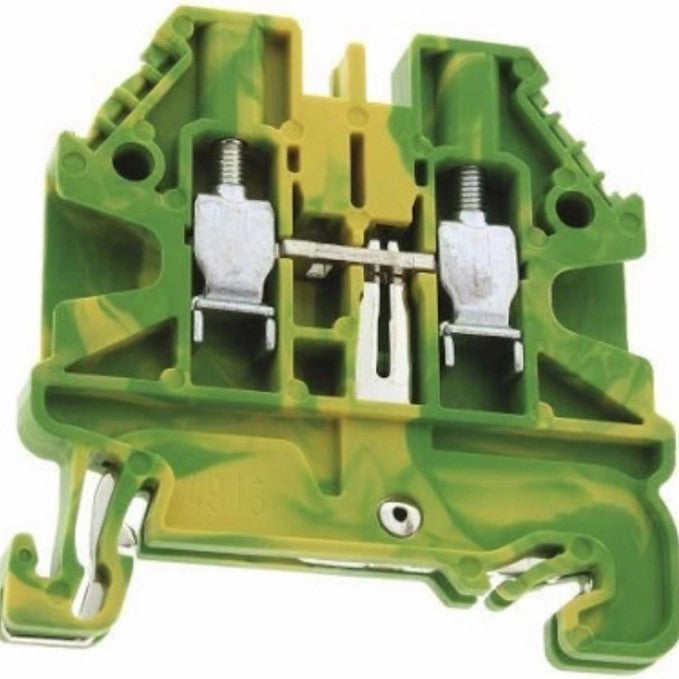

EARTH TERMINAL WT 4 PE
Art # : 58.504.9055.0
Description : Earth terminal WT 4 PE
Nominal cross section : 4 mm2
Color : Green/Yellow
Width : 8mm
Insulating housing : PA666
Inflammability class of insulation material acc. with UL94 : V0
Technical data
Rated : 1000V, 8kV
Pollution degree : 3
Length : 48 mm
Width : 6 mm
Height : 48mm
Connection Type : Screw Connection
Min/Max cross section : 0.14 mm2 - 6 mm2 (Solid & Serabut)
Wire Strip Length : 9 mm
Torque conductor mounting : 0.5 Nm
Technical Data UL/CSA
Cross section UL : 26-10 AWG
Voltage UL : 600V
Cross section CSA : 26-10 AWG
Voltage CSA : 600V
