Description

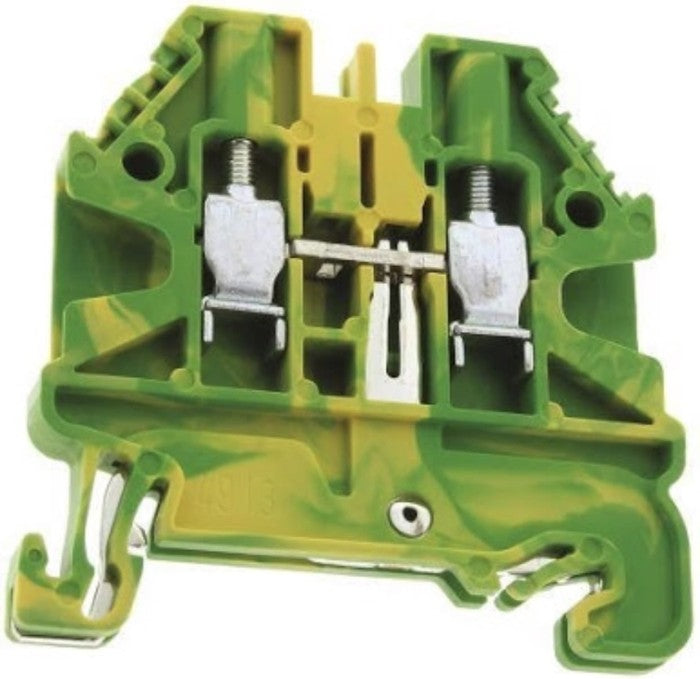

EARTH TERMINAL WT 6 PE
Art # : 58.506.9055.0
Description : Earth terminal WT 6 PE
Nominal cross section : 6 mm2
Color : Green/Yellow
Width : 8mm
Insulating housing : PA666
Inflammability class of insulation material acc. with UL94 : V0
Technical data
Rated : 1000V, 8kV
Pollution degree : 3
Length : 48 mm
Width : 8 mm
Height : 48 mm
Connection Type : Screw Connection
Min/Max cross section : 0.2 mm2 - 10 mm2 (Solid & Serabut)
Wire Strip Length : 11 mm
Torque conductor mounting : 1.2 Nm
Technical Data UL/CSA
Cross section UL : 24-8 AWG
Voltage UL : 600V
Cross section CSA : 24-8 AWG
Voltage CSA : 600V
