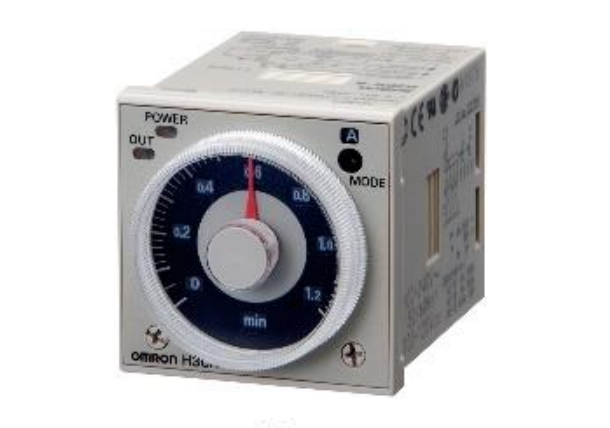

Solid-state Multi-functional Timer Omron
Type : H3CR-A8
Operating Voltage : 24 to 48VAC (50/60Hz) / 12 to 48 VDC

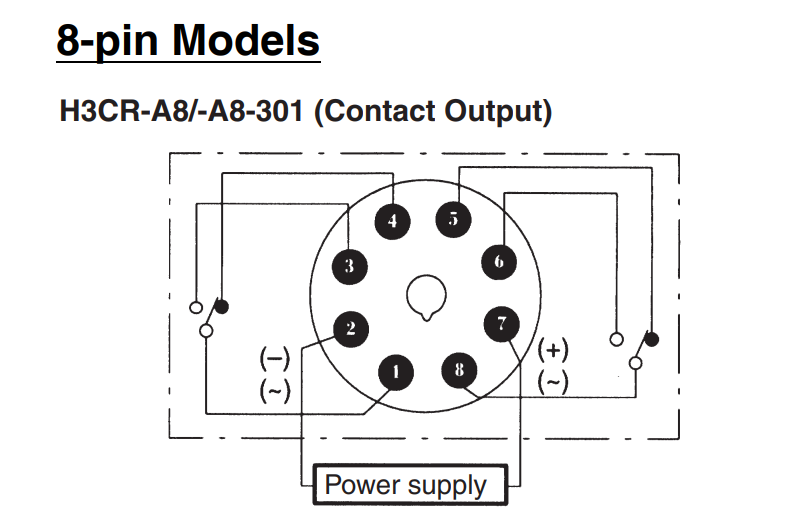

Number of Pin : 8Pin
Output : Relay Output (SPDT) 5A at 250VAC

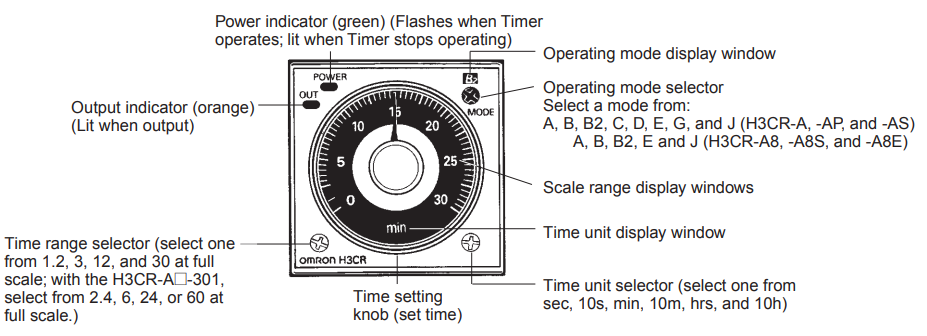

Operating Mode : A : On Delay
B: Flicker OFF Start
B2 : Flicker On Start
E : Interval
J : One-Shot
Time Range : 0.05s to 300h

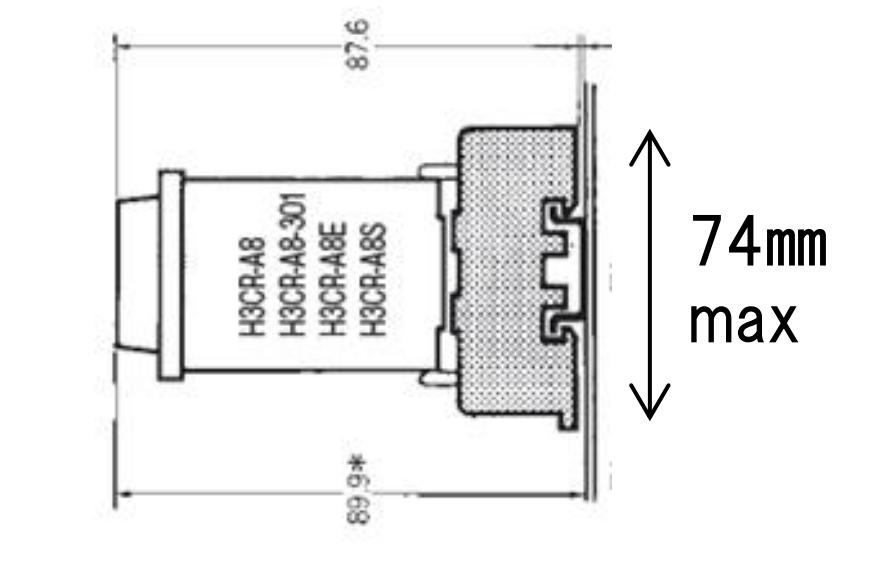

Socket : PF08A-E
PF085A
