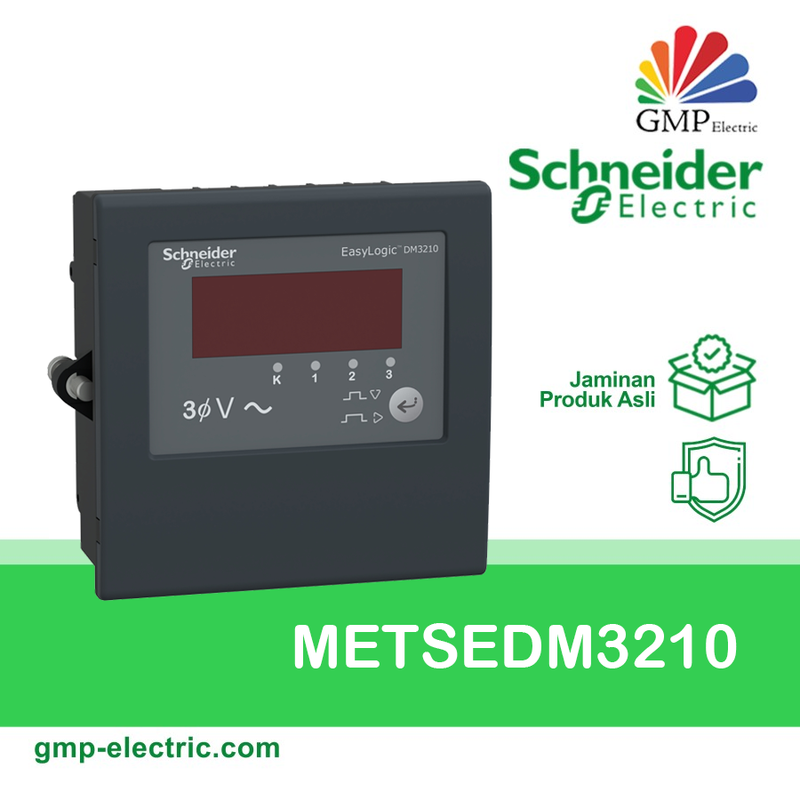

Voltmeter Digital Schneider METSEDM3210 96x96mm 80-480VAC 3 Phase, Class 0.5

Roll over image to zoom in

Voltmeter Digital Schneider METSEDM3210 96x96mm 80-480VAC 3 Phase, Class 0.5

Name: Voltmeter Digital Schneider METSEDM3210 96x96mm 80-480VAC 3 Phase, Class 0.5
Brand: Schneider
SKU: 0016144
Price: 362900.0 IDR
Availability: OutOfStock

Save 43%

SchneiderSKU: 0016144

filler

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Range	EasyLogic
Product name	EasyLogic DM3000
Device short name	DM3210
Product or component type	Voltmeter
Device application	GenSet Test laboratories Load control

Complementary
poles description	3P 3P + N
type of measurement	Voltage
[Us] rated supply voltage	100...230 V AC +/- 20 % 100...230 V DC +/- 20 %
Supply frequency	50/60 Hz +/- 5 Hz
Network frequency	50 Hz 60 Hz
Maximum power consumption in VA	3 VA at 230 V AC
Display type	LED
Display digits	4
Full scale display	999.9
Control type	Selector switch built-in
Analogue input type	Voltagethree phase
Measurement voltage	25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz 44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz
Accuracy	Voltage +/- 0.5 % of full scale for class 0.5
Device mounting	Flush
Mounting support	Panel
Type of installation	Indoor
Measurement category	Category III
Standards	IEC 61326
Product certifications	CE conforming to IEC 61010-1

Environment
Electromagnetic compatibility	Conducted and radiated emissions class A conforming to CISPR 11 Electrostatic discharge conforming to IEC 61000-4-2 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Surge immunity test conforming to IEC 61000-4-5 Conducted RF disturbances conforming to IEC 61000-4-6 Magnetic field at power frequency conforming to IEC 61000-4-8 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Harmonics conforming to IEC 61000-3-2 Limitation of voltage changes, voltage fluctuations and flicker in low-voltage conforming to IEC 61000-3-3
IP degree of protection	Front panel: IP50 Body: IP30
Relative humidity	5…95 %
Pollution degree	2
Ambient air temperature for operation	-10…60 °C
Ambient air temperature for storage	-25…70 °C
Colour	Black
Width	96 mm
Height	96 mm
Depth	38 mm
Cut-out dimensions	92 x 92 mm
Net weight	170 g
