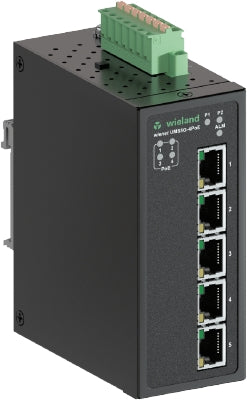

IP SWITCH WIENET UMS 5G-4POE Wieland (83.040.0131.0)

Roll over image to zoom in

IP SWITCH WIENET UMS 5G-4POE Wieland (83.040.0131.0)

IP SWITCH WIENET UMS 5G-4POE Wieland (83.040.0131.0)

Share this product

GDK: Pcs - HRC: Pcs - LIC: Pcs - PST: Pcs

Commercial data

Article number	83.040.0131.0
Article description	IP switch WIENET UMS 5G-4PoE
EAN	4049088401435
Order Unit	1 piece(s)
Country of origin	TW
Customs tariff number	85176200

Dimensions

Length packed	183 mm
Width packed	159 mm
Height packed	78 mm
Gross weight packed	520 g
Net weight single part	350 g
Volume packed	2269.566 ccm

Mounting method	DIN rail (top hat rail)
Degree of protection (IP)	IP30
Housing material	Metal
Manageable	No
Ethernet	yes
Power over Ethernet	yes
Fast Ethernet	yes
Gigabit Ethernet	yes
10 Gigabit Ethernet	No
Number of ports 10/100/1000 Mbps RJ45	5
Number of ports 100 Mbps SC	0
Type of electric connection	Push-In connection//true
LED status indication	P1, P2, ALM, 4xPoE, 4x10/100M, 4xData
Connector cross section	0,25mm²...2,5mm² (AWG26...AWG12)
Wire strip length	9 mm

Voltage type	DC
Min. operating temperature	-40 °C
Max. operation temperature	70 °C
Storage temperature / transport min.	-40 °C
Storage temperature / transport max.	85 °C
relative humidity min.	5 %
relative humidity max.	95 %
Net weight	350 g
Redundant power supply	2 power inputs

Voltage type	DC
Operating voltage min.	12 V
Operating voltage max.	52 V
Input voltage PoE (802.3af)	45V - 52V
Input voltage PoE+ (802.3)	51V - 52V
Input current, max.	2.6 A
Power consumption max.	< 130 W

Depth	89.6 mm
Width	45.4 mm
Height	110 mm
Weight	350 g

ECLASS 11
ECLASS 8.1	19170106
ETIM 7.0	EC000734
ETIM 6.0	EC000734
ETIM 5.0	EC000734
ETIM 4.0	EC000734

Product compliance

REACH-SVHC conformity status	Compliant
