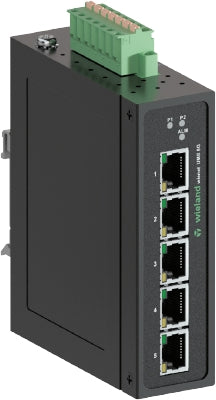

IP SWITCH WIENET UMS 5G Wieland (83.040.0130.0)

Share this product

Mounting method	DIN rail (top hat rail)
Degree of protection (IP)	IP30
Housing material	Metal
Manageable	No
Ethernet	yes
Power over Ethernet	No
Fast Ethernet	yes
Gigabit Ethernet	yes
Diagnostic LEDs	Power/Link status/Data/Data rate
10 Gigabit Ethernet	No
Number of ports 10/100/1000 Mbps RJ45	5
Number of ports 100 Mbps SC	0
Type of electric connection	Push-In connection//true
LED status indication	PWR1, PWR2, Alarm, RJ45 Act/Link
Connector cross section	0,25mm²...2,5mm² (AWG26...AWG12)
Wire strip length	9 mm

Voltage type	DC
Min. operating temperature	-40 °C
Max. operation temperature	70 °C
Storage temperature / transport min.	-40 °C
Storage temperature / transport max.	85 °C
relative humidity min.	5 %
relative humidity max.	95 %
Net weight	420 g
Redundant power supply	2 power inputs

REACH-SVHC conformity status	Compliant
