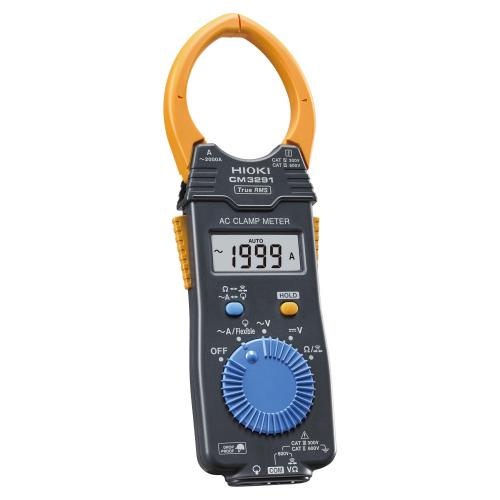

HIOKI AC Clamp Meter CM3291

Name: HIOKI AC Clamp Meter CM3291
Brand: Hioki
Price: 2113890.0 IDR
Availability: OutOfStock

Share this product

Basic specifications

Accuracy guaranteed: 1 year

AC Current range	42 to 2000 A, 3 ranges (40 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.5% rdg. ±5 dgt.
DC Voltage range	420.0 mV to 600 V, 5 ranges, Basic accuracy: ±1.0 % rdg. ±3 dgt. (at 4.2 V range)
AC Voltage range	4.200 V to 600 V, 4 ranges (45 to 500 Hz, True RMS), Basic accuracy 45-66 Hz: ±1.8% rdg. ±7 dgt. (at 4.2 V range)
Crest factor	For 2500 counts or less, 2.5 Reduces linearly to 1.5 or less at 4200 counts But, 1.5 or less for 2000 A ACA range
Resistance range	420.0 Ω to 42 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt. (at 420 Ω range)
Other functions	Continuity check: Buzzer sounds at 50 Ω ±40 Ω or less, Data hold, Auto power save, Drop-proof from height of 1 meter
Power supply	Coin type lithium battery (CR2032) ×1, Continuous use 70 hours
Core jaw diameter	φ 46 mm (1.81 in), Jaw dimension: 65 mm (2.56 in) W × 13 mm (0.51 in) D
Dimensions and mass	57 mm (2.24 in) W × 198 mm (7.80 in) H × 16 mm (0.63 in) D, 103 g (3.6 oz)
Included accessories	Carrying case ×1, TEST LEAD L9208 ×1, Coin type lithium battery CR2032 (for trial purposes only) ×1, Instruction manual ×1, Download guide ×1, Operating precautions ×1

Core jaw dia.	φ 130 mm (5.12 in) (Cable cross-section diameter: 5 mm (0.20 in); tip cap diameter: 7 mm (0.28 in))
AC Current	419.9 A/ 4199 A, 2 ranges (±3.0 % rdg. ±5 dgt.)
Cable length	800 mm (31.5 in)
