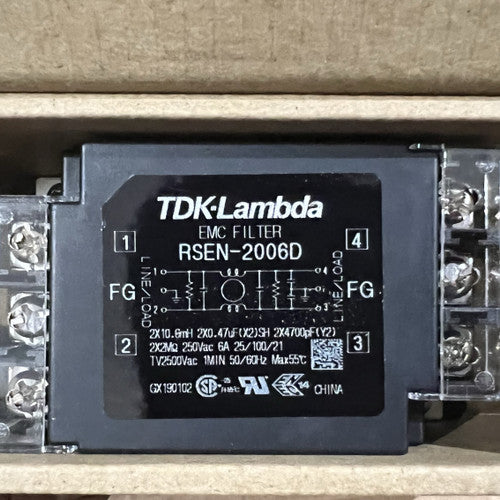

The RSEN single-phase EMC filters are enclosed in a compact case and part numbers up to 30A can be either chassis or DIN rail mounted (up to 30A) with low
leakage current options. They are rated for 250Vac with fifteen current ratings of 3 to 300A enabling the optimum attenuation to match the current rating. The series
uses TDK’s ferrite core material to provide noise attenuation. The connection terminals are integrated into the case with both the screws and terminal covers captive.
This avoids dropped or lost hardware. The RSEN 3A to 30A models are UL certified for a short circuit current rating of up to 14kA and the 40, 50 and 60A models
35kA with the appropriate breaker.
Features Benefits
• 3 to 300A Current Ratings

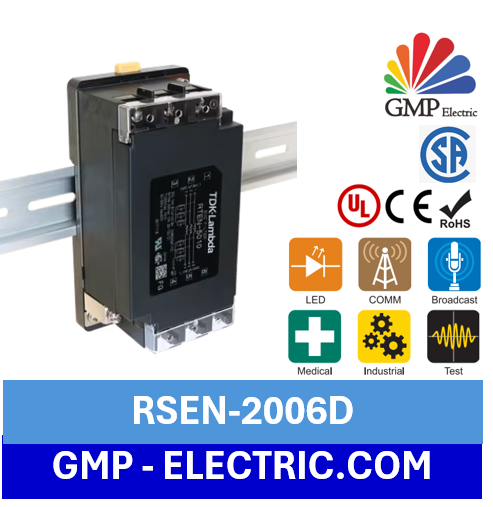

• DIN Rail Bracket Option
• Captive Hardware
• Safety Certified
• Optimizes the Attenuation for the Current Rating
• Flexible Mounting
• No Lost Screws or Terminal Covers
• Global Use
Input
Rated Voltage Vac/Vdc 250 (Safety certified for AC input only)
Input Frequency Hz 47 - 63

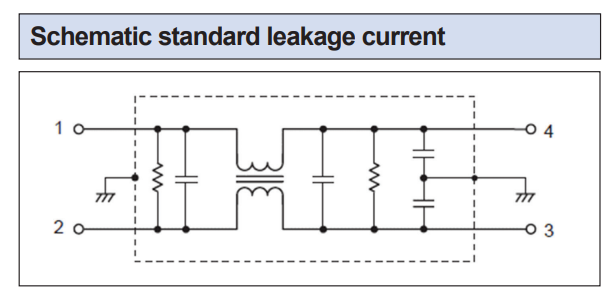

Leakage Current - See model selector
Safety Certifications and Markings - UL1283, CSA C22.2 No.8 (cUL), EN60939-1, -2), conforms to RoHS Directive
Environmental

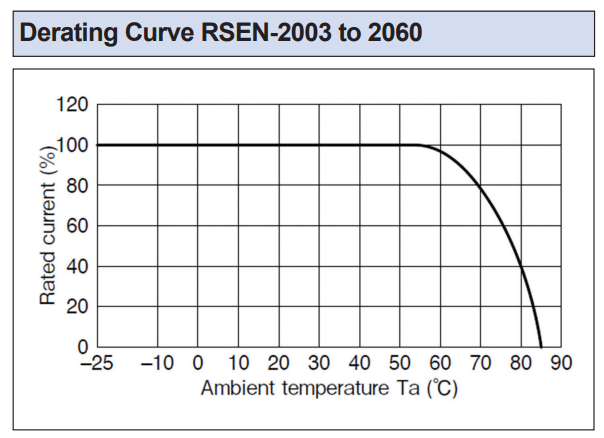

Operating Temperature °C -25 to +85, derating above 50-55. See derating curves below
Storage Temperature °C -25 to +85
Humidity (non condensing) %RH Operating and storage 15 - 85
Cooling - Convection
Withstand Voltage Vac 2,500 input to earth
Isolation Resistance (For 1 minute) MΩ >100 at 500Vdc
Vibration - 10-55Hz Amplitude 1.5mm, Sweep for 1 min. X, Y and Z directions for 2 hours each
Other
Weight (Typ) g RSEN2003: 170
RSEN2006-2030: 230,
RSEN2040-2060: 870,
RSEN2080: 360
RSEN2100: 380,
RSEN2150: 580,
RSEN2200: 840,
RSEN2250: 810,
RSEN2300: 780

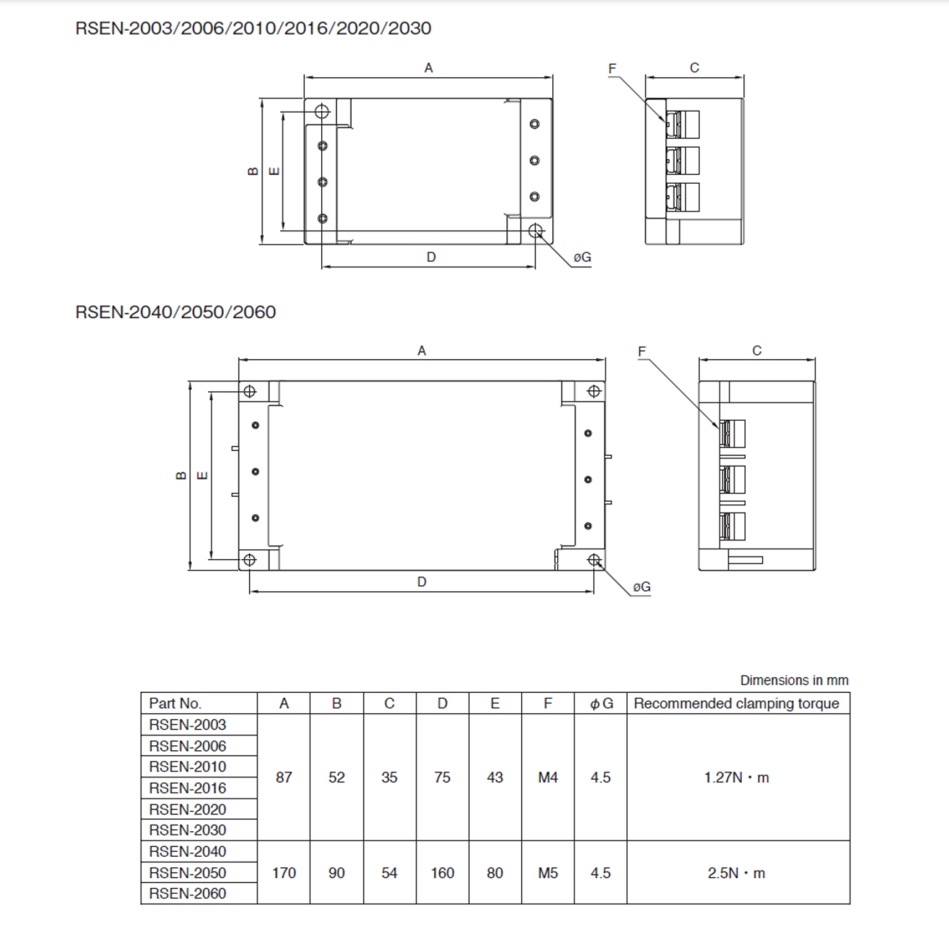

Size (LxWxH) mm See outline drawings
Size (LxWxH) Inches -
Connectors See outline drawings
MIL-HDBK-217F NOTICE2 Hours RSEN2003: 6,914,673, RSEN2300: 5,235,054
